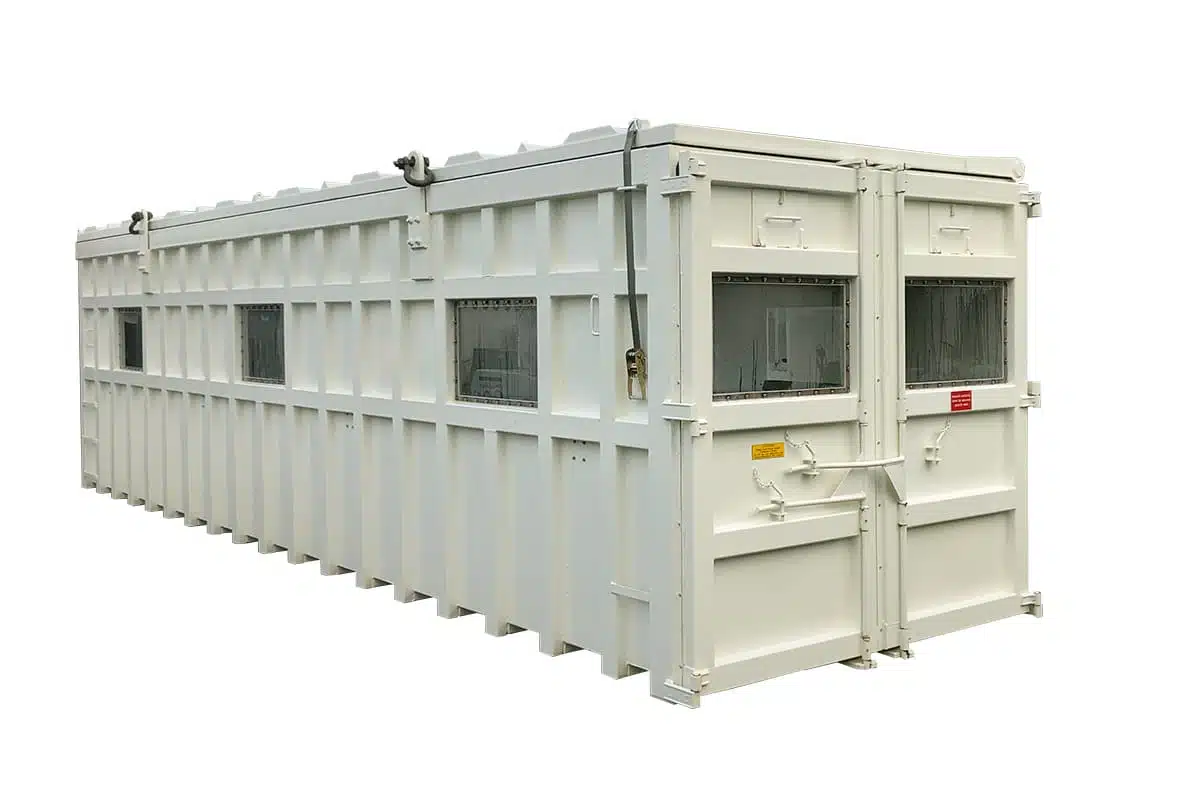

DERC Blast Container
The Mobile Solution for Safe and Closed Tube Bundle Cleaning
The DERC Blast Container is a (semi) automatic solution for high pressure water jetting of tube bundles. The Blast Container is a bundle blaster which is easy adaptable to a standard container. The Blast Container is able to clean both the inside and the outside of the tube bundles or other parts.
Internal and External Cleaning
The system of the Blast Container is a very simple moving cleaning portal which makes it possible to clean the tube bundles externally and as well both the tube sheets. For internal cleaning there is an adapter plate to connect your flex lance machine, so both internal and external cleaning can be done. The delivered Blast Container is suitable for tube bundles with a diameter of 450-1600 mm and a length of 6000 mm.
Bundle Rollers
The DERC Blast Container comes with pneumatic driven tube bundle rollers with a maximum capacity of 25 ton.
Features
+ Safe jetting, the operator controls at a safe distance
+ Both internal and external cleaning
+ Adapter plate for dual flex lance machine for internal cleaning
+ 4-Jet Manifold with high speed cleaning nozzles
+ Other jet manifolds available
+ Mobile, easy to transport
+ Full pneumatic bundle rollers
+ Full pneumatic or electric pneumatic controls
+ Adaptable to any standard container
+ Emission free
TUBE BUNDLE RANGE
450-1600 mm
MAX. TUBE BUNDLE LENGTH
6000 mm
MAX. PRESSURE
1000 bar
MAX. FLOW
200 lpm
SWIVEL
MANIFOLD
4-Jet high speed 226
DRIVE
Air powered
BUNDLE ROLLERS
Air powered max. 24 ton
CONTROL
Air or electric pneumatic
