DERC Mini Turret
The Perfect Solution for Cleaning Confined Spaces, Tanks or Reactors

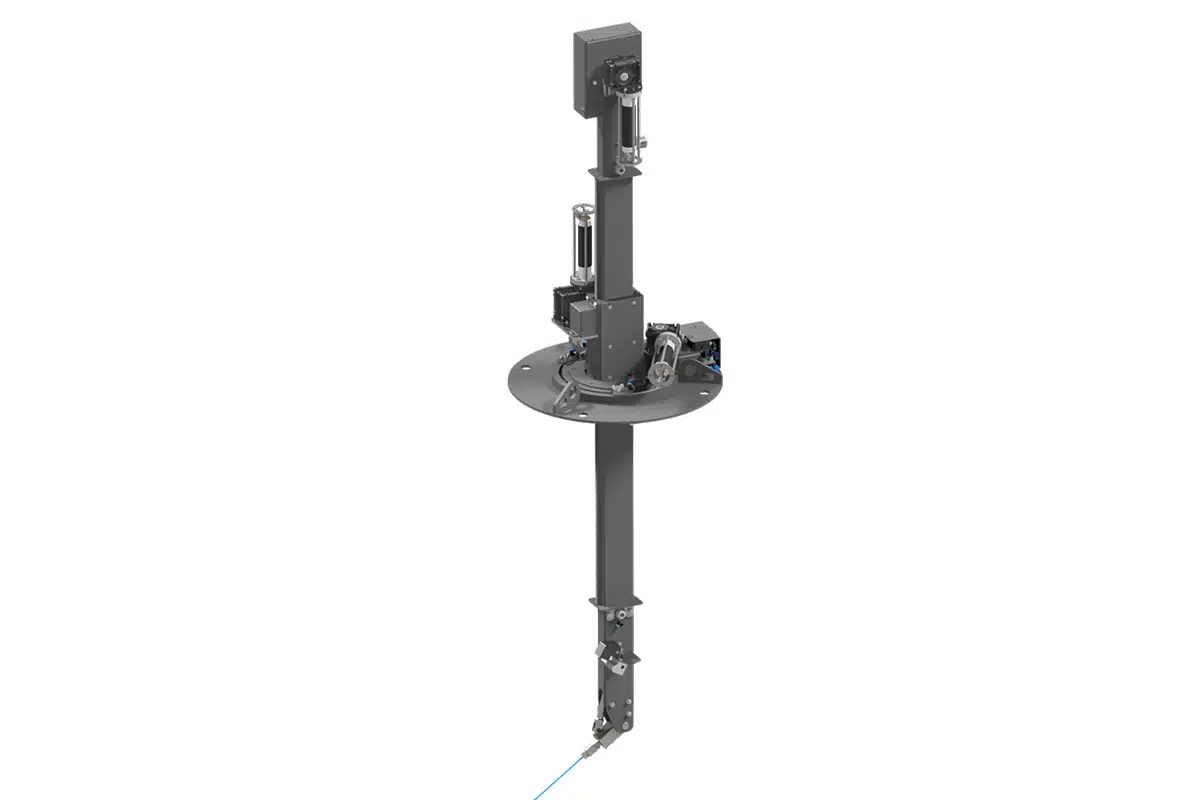

The DERC Mini Turret is an easy to install tool for automated cleaning of tanks or confined spaces. The base of the tool is a flanged base plate with on top the automated jetting arm. The jetting arm of the Mini Turret is designed in a way that it can move up/down, rotation +/- , nozzle up/down or oscillation. This allows the realisation of a 3D cleaning effect.
+ Mini tank canon for cleaning confined spaces
+ Unique and precise positioning
+ Suitable for chemical and high pressure cleaning
+ Fully automatic
+ 3D cleaning effect
Light Weight Version or Stainless Steel
The Mini Turret can be supplied in an aluminium light weight version or in stainless steel. The stainless steel version is suitable to work both with high pressure or for chemicals.
For easy operation the Mini Turret can be equipped with a camera system and monitor. The camera’s are installed on the jetting arm, one near the flange and one next to the nozzle.
500-1500 mm under flange
Nozzle 135° angle range oscillating, arm up/down, arm rotation
Model L/226 high speed jet
Lightweight version aluminium approx. 60Kg / Stainless steel version approx. 90Kg
Chemical cleaning set, swivel, nozzle manifold, automated rotation, 2 end switches installed so the Mini Turret rotates back and forth in a set angle/area, camerasystem
