Product

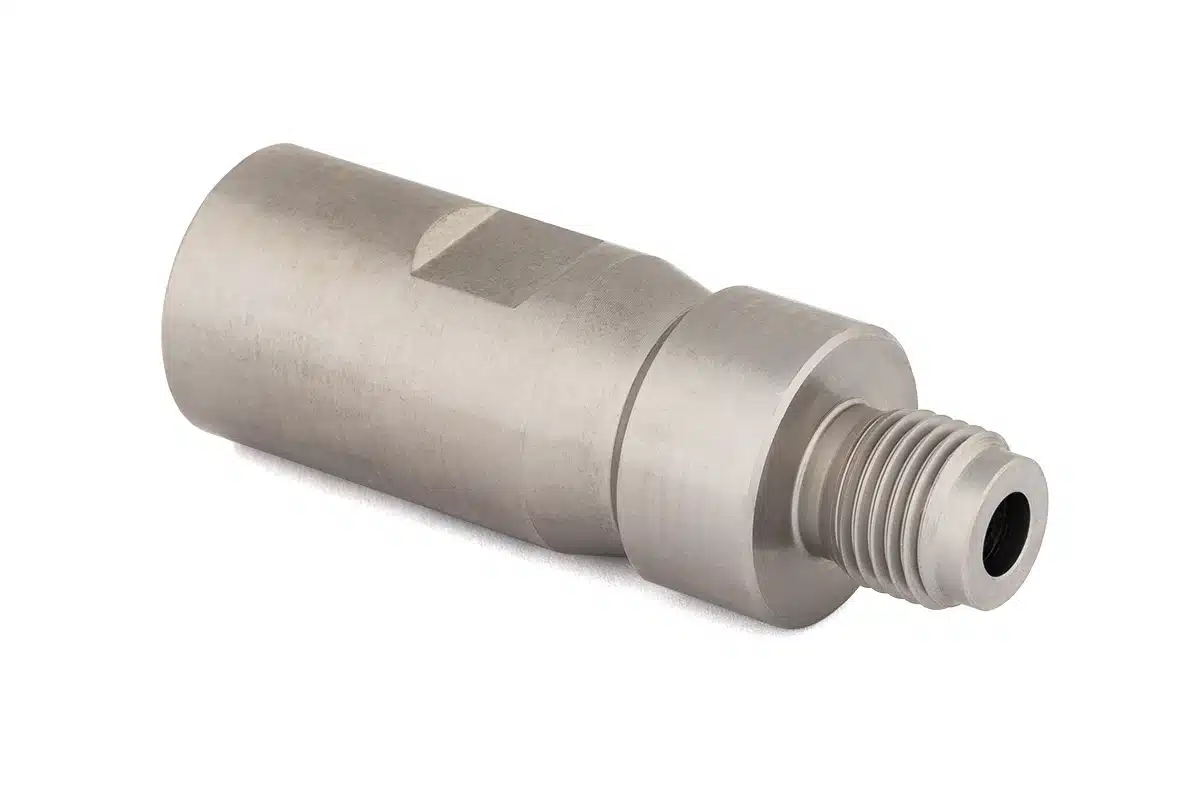

DERC Nozzle Drivers
The DERC range of Nozzle Drivers, also called pusher units, can be used behind every nozzle or even between hoses to give extra thrust. The DERC Nozzle Driver range goes standard up to 1500 bar/ 22K. The nozzle body is corrosion resistant, hardened and guarantees a long life cycle.
The range of nozzle drivers is a stock item with a short delivery time. The DERC Nozzle Drivers are available with standard configurations and connections.
Specifications
DERC Nozzle Driver Configurations
CONNECTION D1
CONNECTION D2
DIAMETER
NO. OF JETS / Ø JETS
PART NO.
M7x1 M
M7x1 F
Ø 9.53 mm
2 x Ø 0.8 mm
ND.10.07.02
M7x1 M
M7x1 F
Ø 9.53 mm
3 x Ø 0.8 mm
ND.10.07.03
M7x1 M
M7x1 F
Ø 9.53 mm
4 x Ø 0.8 mm
ND.10.07.04
1/8" BSP M
1/8" BSP F
Ø 12 mm
2 x Ø 0.8 mm
ND.12.18.02
1/8" BSP M
1/8" BSP F
Ø 12 mm
3 x Ø 0.8 mm
ND.12.18.03
1/8" BSP M
1/8" BSP F
Ø 12 mm
4 x Ø 0.8 mm
ND.12.18.04
1/4" BSP M
1/4" BSP F
Ø 16 mm
2 x Ø 0.8 mm
ND.16.14.02
1/4" BSP M
1/4" BSP F
Ø 16 mm
3 x Ø 0.8 mm
ND.16.14.03
1/4" BSP M
1/4" BSP F
Ø 16 mm
4 x Ø 0.8 mm
ND.16.14.04
1/4" BSP M
1/4" BSP F
Ø 22 mm
2 x Ø 0.9 mm
ND.22.14.02
1/4" BSP M
1/4" BSP F
Ø 22 mm
3 x Ø 0.8 mm
ND.22.14.03
M24x1.5 M
M24X1.5 F
Ø 30 mm
2 x Ø 1.0 mm
ND.30.24.02
M24x1.5 M
M24X1.5 F
Ø 30 mm
3 x Ø 1.2 mm
ND.30.24.03
M24x1.5 M
M24X1.5 F
Ø 30 mm
4 x Ø 1.0 mm
ND.30.24.04
M22x1.5 M
1/4" BSP F
Ø 31 mm
2 x Ø 0.8 mm
ND.31.03.14
M22x1.5 M
M24x1.5 M
Ø 31 mm
3 x Ø 1.0 mm
ND.31.03.24
M22x1.5 M
1/4" BSP F
Ø 31 mm
4 x Ø 0.8 mm
ND.31.03.14
M36x2 M
M36x2 M
Ø 45 mm
3 x Ø M6
ND.45.03.36
