Protect your high pressure equipment
The DERC Pre-filter filters your suction water and protects your valuable high pressure equipment. A filtration of 800 to 30 microns is possible by the use of two various filter elements. The stainless steel filter elements are easy to clean.
The Pre-filter comes standard with one outer and inner filter element. An individual filter element comes with a stainless steel filter mesh. A wide range of filter elements makes a filtration of 800 to 30 microns possible. The water is filtered from the outside to the inside. The Pre-filter is equipped with a flush valve to clean your Pre-filter during operations.
Easy to handle
Safety, ergonomics, simplicity and adding value to your business are the key drivers for our engineering department. This stainless steel DERC Pre-filter is easy to handle and operate.
Filtration (down to 30 microns)
The DERC Pre-filter filters your suction water. A filtration of 800 to 30 microns is possible by using two various filter elements. The stainless steel filter elements are easy to clean.

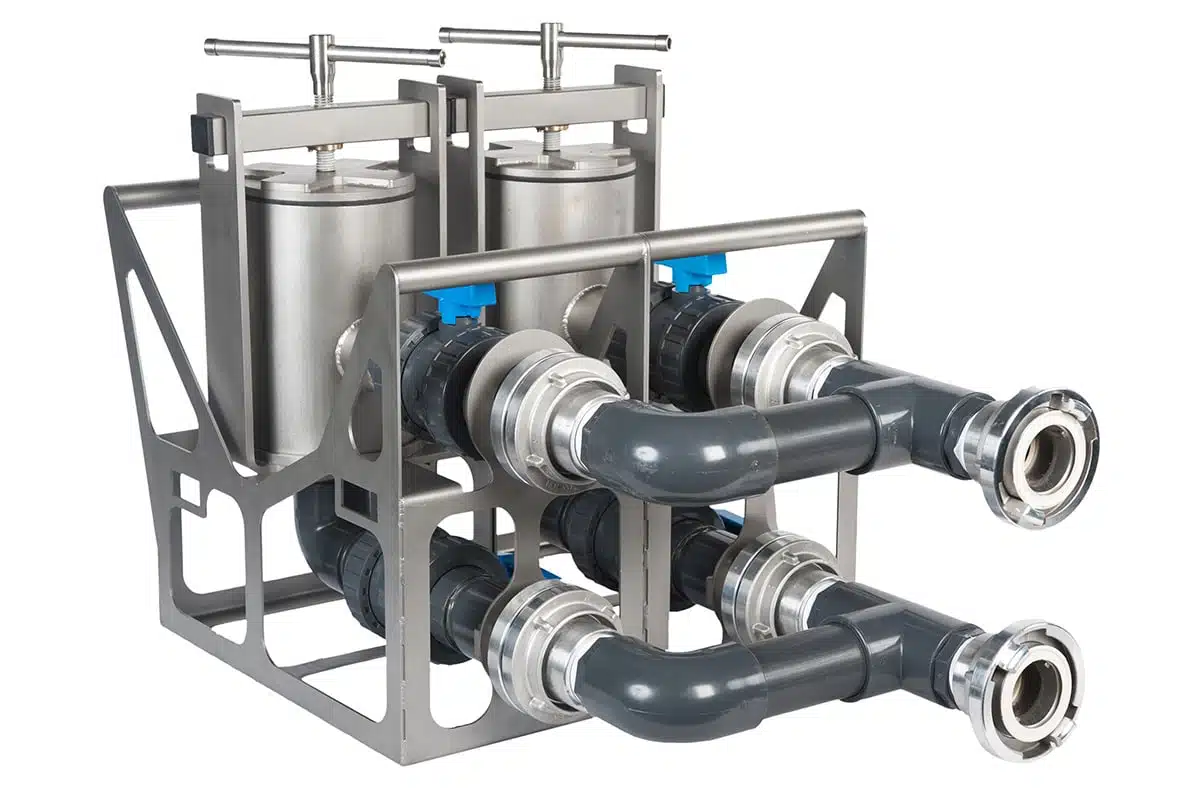

Connect DERC Pre-filters to realise optimal filtration capacity. You can easily link a second or third Pre-filter, doubling or tripling your filter capacity. Just hook on to the clips on the frame and off you go. You can also connect Pre-filters in order to bypass a filter.
30 m3/h (depends on filter screen)
550 mm x 260 mm x 600 mm
Storz cam 81
INNNER FILTER ELEMENT
30/50/75/100/300/435 µm (FL12001.xxx)
OUTER FILTER ELEMENT
75/100/130/200/300/435/800 µm (FL12002.xxx)
