Product

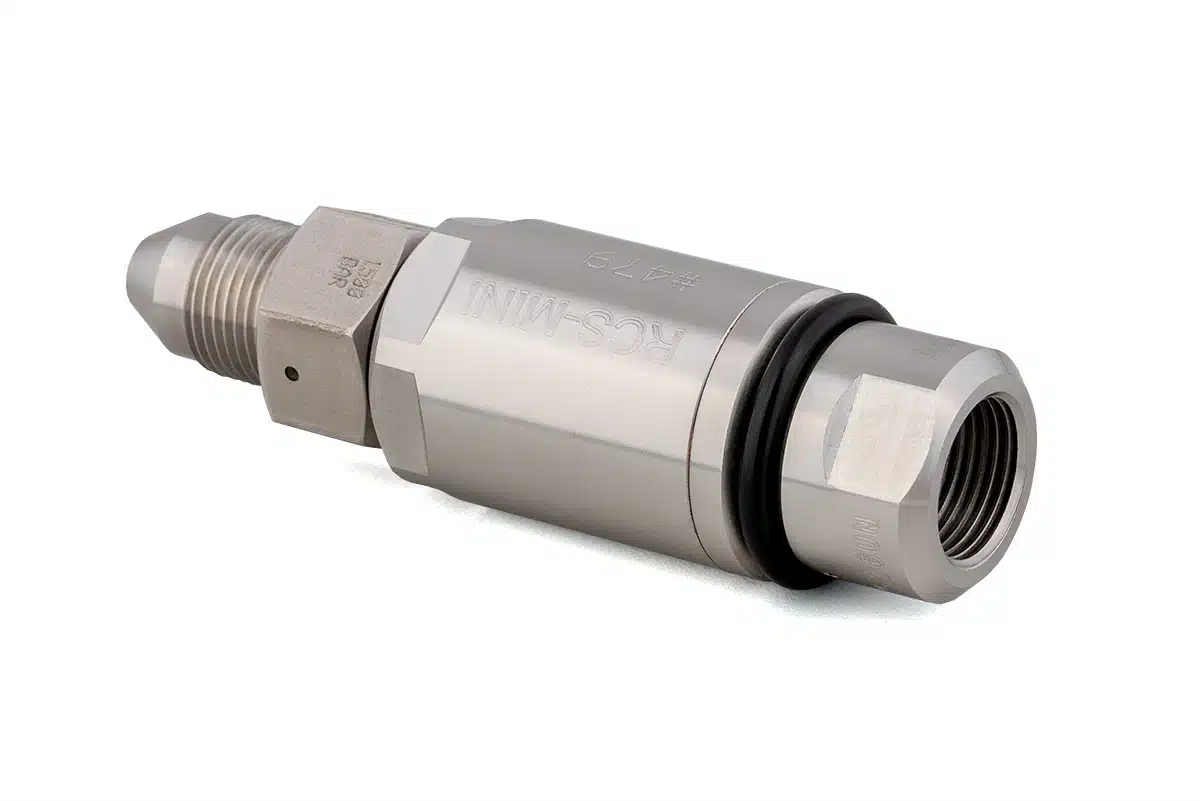

DERC RCS Mini
The compact swivel for any gun up to 1500 bar
The DERC RCS-mini swivels are a complete range of swivels specially designed for jetting guns up to 1500 bar.
Features
+ Available with various connections
+ Compact and lightweight
+ Low torque, easy to rotate and low maintenance
+ Small in diameter, therefore easy to fit in combination
with a hose sleeve
+ Up to 600 RPM
+ NPT, metric and UNF connections
Applications
+ Easy hose handling
+ Prevents hose twisting
+ Fits any gun
Specifications
DERC RCS MINI OPTIONS
INLET CONNECTION
SHAFT CONNECTION
DIAMETER
LENGTH
MAX. PRESSURE
MAX. FLOW
PART NO.
1/2” NPT F
1/2” NPT M
35 mm
115 mm
1000 bar
80 lpm
RCS-MINI-12NMF
M24 x 1.5 DKOS M
1/2” BSP MV
35 mm
125 mm
1500 bar
80 lpm
RCS-MINI-24M-12MV
M24 x 1.5 DKOS M
M22 x 1.5 Flat M
35 mm
125 mm
1500 bar
80 lpm
RCS-MINI-24M-22MV
13/16”-16 UN F
13/16”-16 UNF M
35 mm
120 mm
1500 bar
80 lpm
RCS-MINI-916MP
M24 x 1,5 DKOS M
1/2” NPT M
35 mm
125 mm
1000 bar
80 lpm
RCS-MINI-24M.12NM
M24 x 1,5 DKOS M
1/2” NPT F
35 mm
135 mm
1000 bar
80 lpm
RCS-MINI-24M.12NF
MAINTENANCE KITS
DESCRIPTION
PART NO.
Minor kit
RCS-MINI-100
Major kit
RCS-MINI-300
Tool kit
RCS-MINI-500 / RCS-44-1500
