DERC RCS-UHS
Rugged design, easy to maintain
DERC RCS Ultra High pressure Swivels are designed to transport high pressure water from a stationary line to a rotating or twisting assembly.
Heavy duty bearings, low torque rotation and the rugged design make the RCS-UHS suitable for many applications.
Features
+ Unique, improved and easy to maintain
+ Available with various connections
+ Heavy duty, stainless steel construction
+ Low static torque for easy rotation
+ 0º or 90º inlet connection
+ Up to 2000 RPM
+ Metric and UNF connections
Applications
+ Hose reels
+ Automated systems and solutions
+ Lance cleaning systems
Specifications
DERC RCS-UHS OPTIONS
INLET CONNECTION
SHAFT CONNECTION
LENGTH
DIAMETER
MAX. PRESSURE
MAX. FLOW
PART NO.
M30 X 2 F
M14 x 1.5 LH M
165 mm
45 mm
3000 bar
75 lpm
RCS-UHS-M14
1 1/8" - 12 UNF F
9/16"- 18 UNF LH M
165 mm
45 mm
3000 bar
75 lpm
RCS-UHS-16HP
1 1/8" - 12 UNF F 90°
9/16"- 18 UNF LH M
180 mm
45 mm
3000 bar
75 lpm
RCS-UHS-916HP 90°
1 1/8" - 12 UNF F
9/16"- 18 UNF LH M
200 mm
45 mm
3000 bar
75 lpm
RCS-UHS-L-916HP
MAINTENANCE KITS
DESCRIPTION
PART NO.

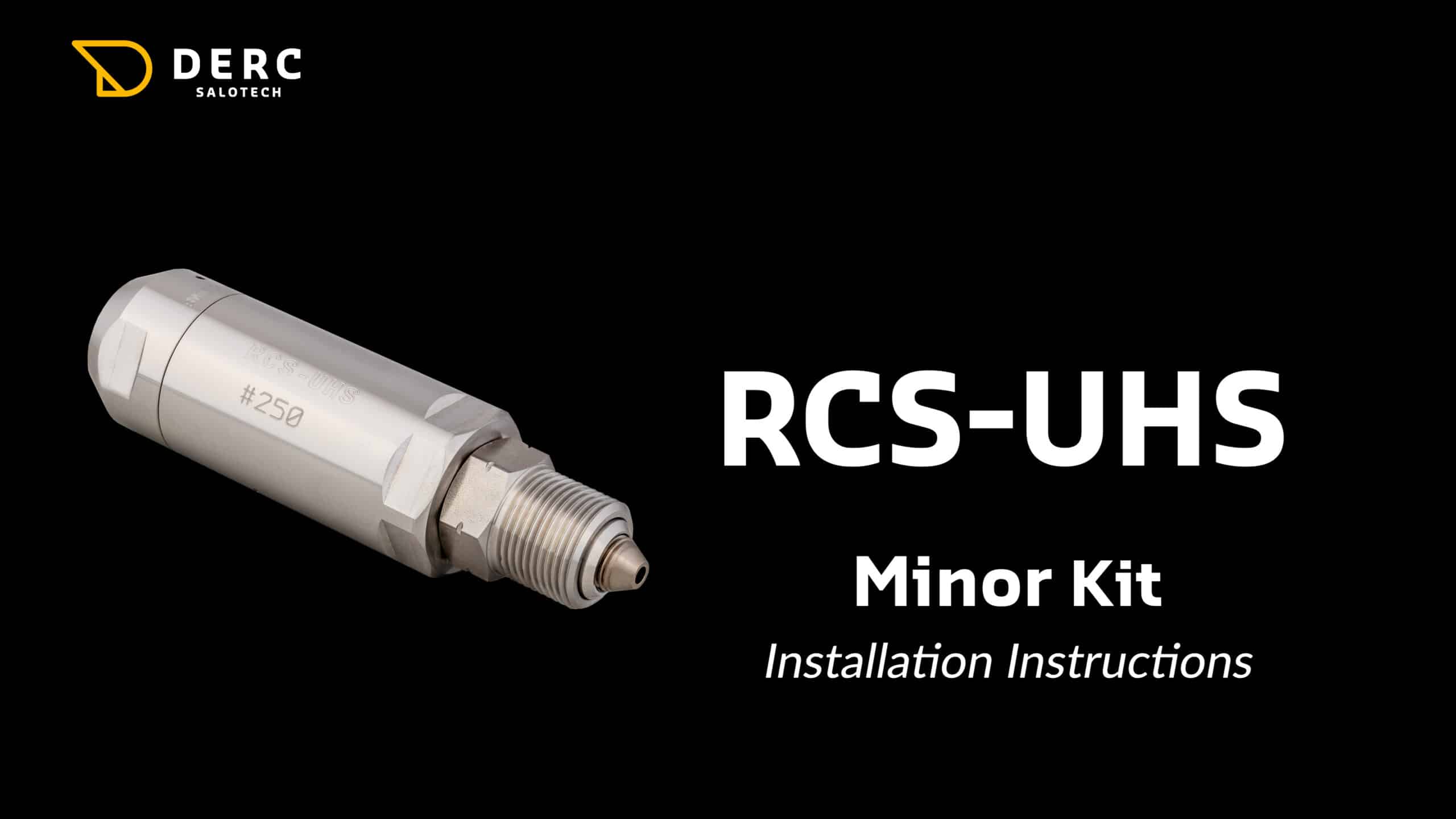

Minor kit
RCS-UHS-100

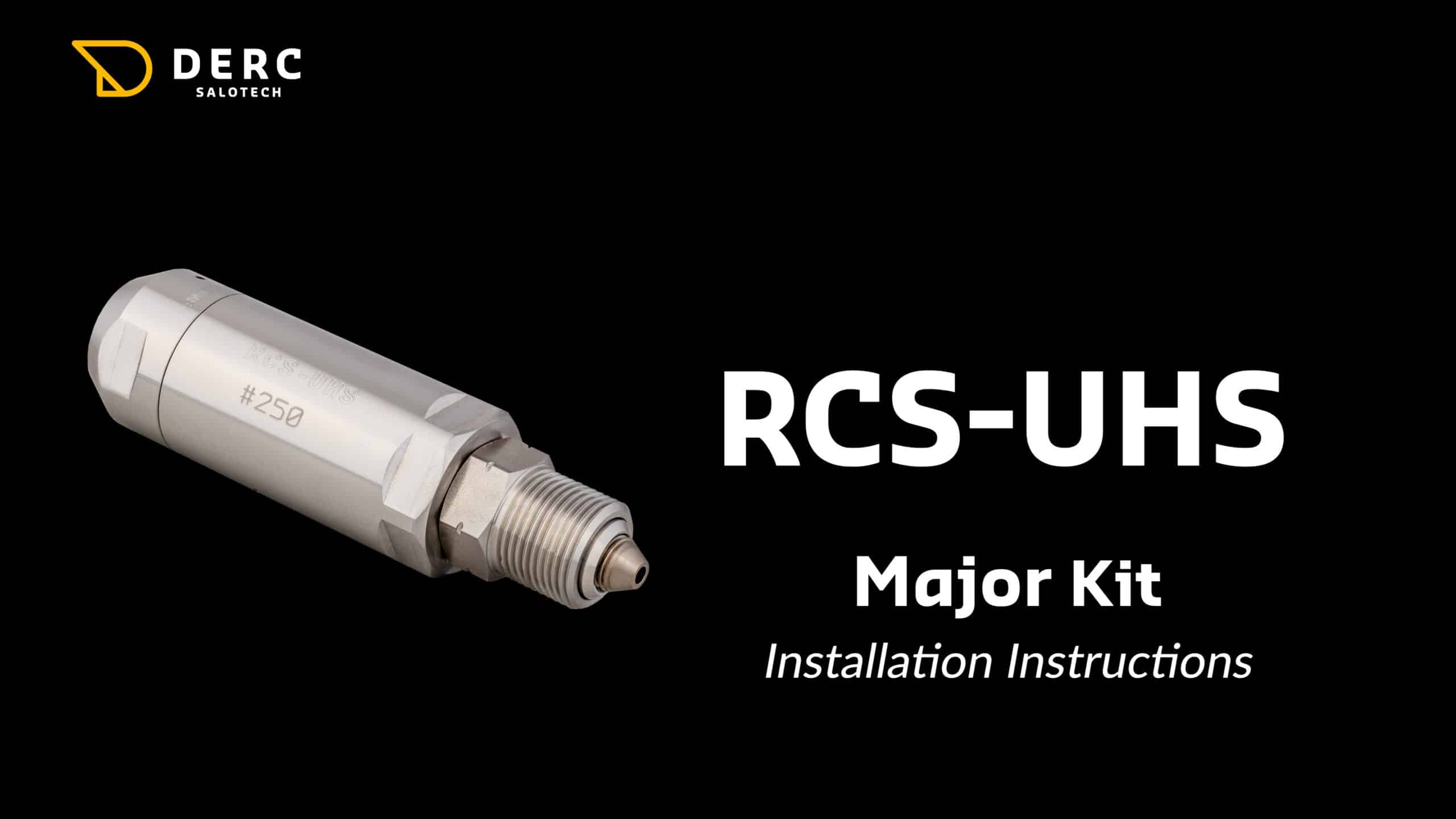

Major kit
RCS-UHS-300
Tool kit
RCS-44-500
