Product

DERC RN-Nozzle

For cleaning with Rotocar Cleaning Systeem till 1500 bar/ 22K

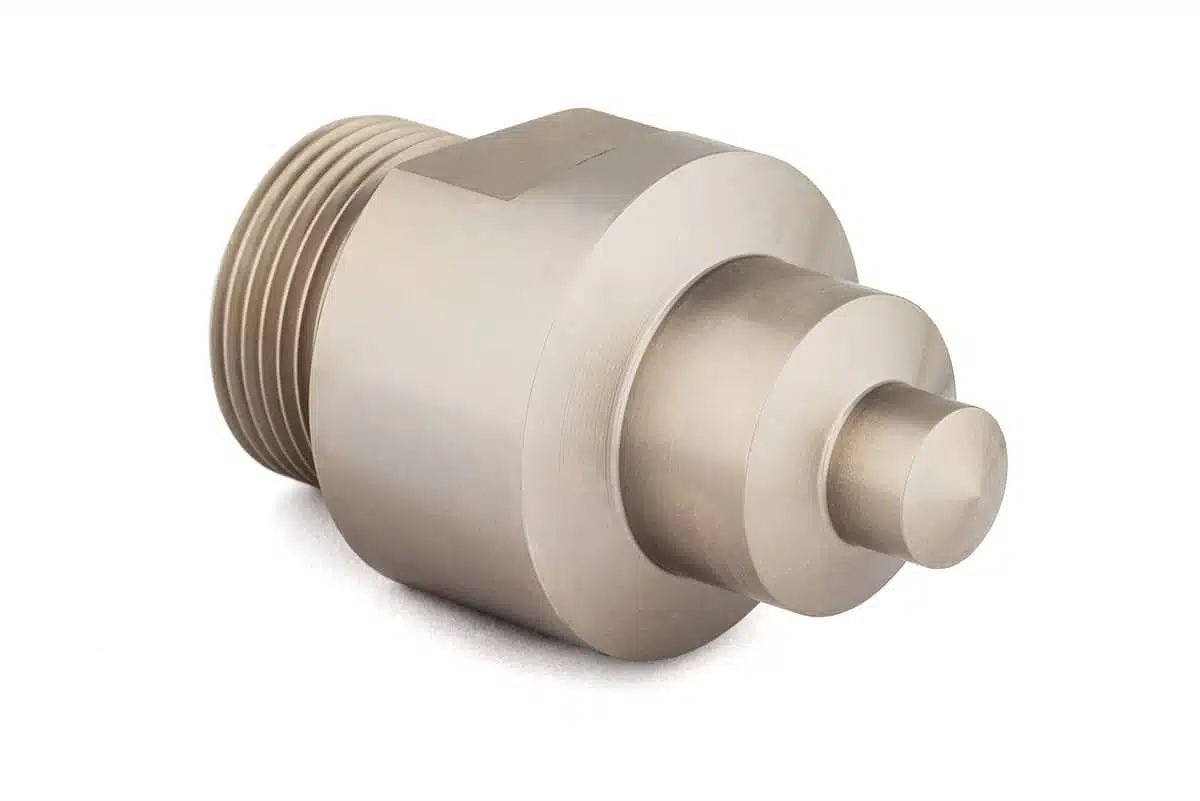

The Rotocar Nozzle (RN-nozzle) is specially designed for cleaning pipe systems with our Rotocar Cleaning System till a maximum working pressure of 1500 bar/ 22K. The nozzle can be specially configured for your operating condition per order. The nozzle is suitable for the cleaning of clogged pipes. Our special stages pyramid design enhances the effectiveness of your impact.

Because of the special design the RN-nozzle can be supplied in many configurations. The RN-nozzle has a diameter of 32 mm and a male connection M24 x 1.5 mm. The hardened nozzle-body is corrosion resistant and quarantees a long life cycle.

Stock item

The RN-nozzle is a stock item with a short delivery time and an attractive price level.

Configured on request

The nozzle will be optimally configured for your working conditions. Based on your requirements and specifications (such as pressure, pump capacity, use as pulling/pushing or neutral, wire type, permissible reaction force and spray pattern) we advise you an optimal configuration.

Specifications

DERC RN-Nozzle Sizes

CONNECTION

THREAD

ORIFICES

LENGTH

DIAMETER

PART NO.

M24x1.5

Male

3xØ1.7 mm

53 mm

Ø 32 mm

RN.029.31.xxx

M22x1.5

Female

2xT4

74 mm

Ø 45 mm

RN145.2T4.14F

M22x1.5

Female

4xT4

93 mm

Ø 45 mm

RN145.4T4.14F

M22x1.5

Female

20xT4

108 mm

Ø 69 mm

RN169.20T4.14F

M18x1

Female

8xM4

50 mm

Ø 30 mm

38.246.08.M4
