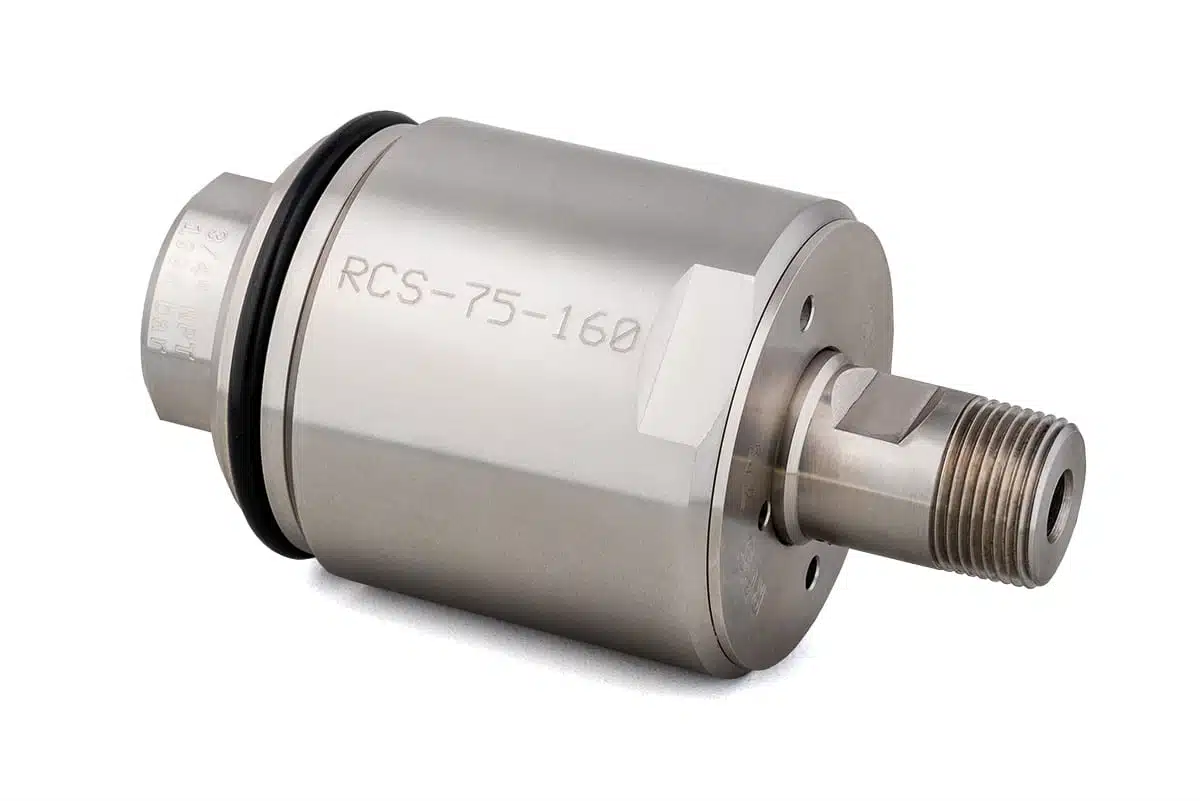

DERC Rotary Coupling Swivel RCS-75
Rugged design, easy to maintain
DERC RCS-75 swivels are designed to transport high pressure water from a stationary line to a rotating or twisting assembly. Heavy duty ball bearings, low torque rotation and the rugged design make the DERC RCS-75 suitable for many applications. The swivels are low maintenance due to life lubricated bearings, no need to add grease. Available with either 0º or 90º inlets.
Features
+ Unique, improved and easy to maintain seal
+ Lifetime lubricated bearings
+ Multiple inlet options available
+ Heavy duty stainless steel construction
+ 0º or 90º inlet connection
+ Common metric wrench sizes
+ Available in metric, UNF and NPT threading
+ Up to 600 RPM
Applications
+ Hose reels
+ Automated systems and solutions
+ Prevention of hose twist in large lines
DERC RCS-75 OPTIONS
INLET CONNECTION
SHAFT CONNECTION
DIAMETER
LENGTH
MAX. PRESSURE
MAX. FLOW
PART NO.
M24 x 1.5 F
M24 x 1.5 M
75 mm
150 mm
1500 bar
400 lpm
RCS-75-24FV.24MV
M24 x 1.5 F 90°
M24 x 1.5 M
75 mm
150 mm
1500 bar
400 lpm
RCS-75-24FV.24MV 90°
3/4" NPT F
3/4" NPT M
75 mm
150 mm
1000 bar
400 lpm
RCS-75-34NF.34NM
3/4" NPT F
M24 x 1.5 M
75 mm
150 mm
1000 bar
400 lpm
RCS-75-34NF.24MV
3/4" NPT F 90°
3/4" NPT M
75 mm
150 mm
1000 bar
400 lpm
RCS-75-34NF.34NM 90°
M24 x 1.5 DKOS
M24 x 1.5 M
75 mm
180 mm
1500 bar
400 lpm
RCS-75-24M.24MV
M36 x 2 DKOS
M24 x 1.5 M
75 mm
200 mm
1500 bar
400 lpm
RCS-75-36M.24MV
3/4" UNF F
3/4" UNF M
75 mm
154 mm
1500 bar
400 lpm
RCS-75-M12F.M12M
3/4" UNF F 90°
3/4" UNF M
75 mm
154 mm
1500 bar
400 lpm
RCS-75-M12F.M12M 90°
MAINTENANCE KITS
DESCRIPTION
PART NO.
Major kit RCS75 1500 bar
RCS-75-300
Minor kit RCS75 1500 bar
RCS -75-100
Tool kit RCS-75 / SLC
RCS-SLC-500
