DERC Small Radius Cutter
The Radius Cutter For Every Chamfer

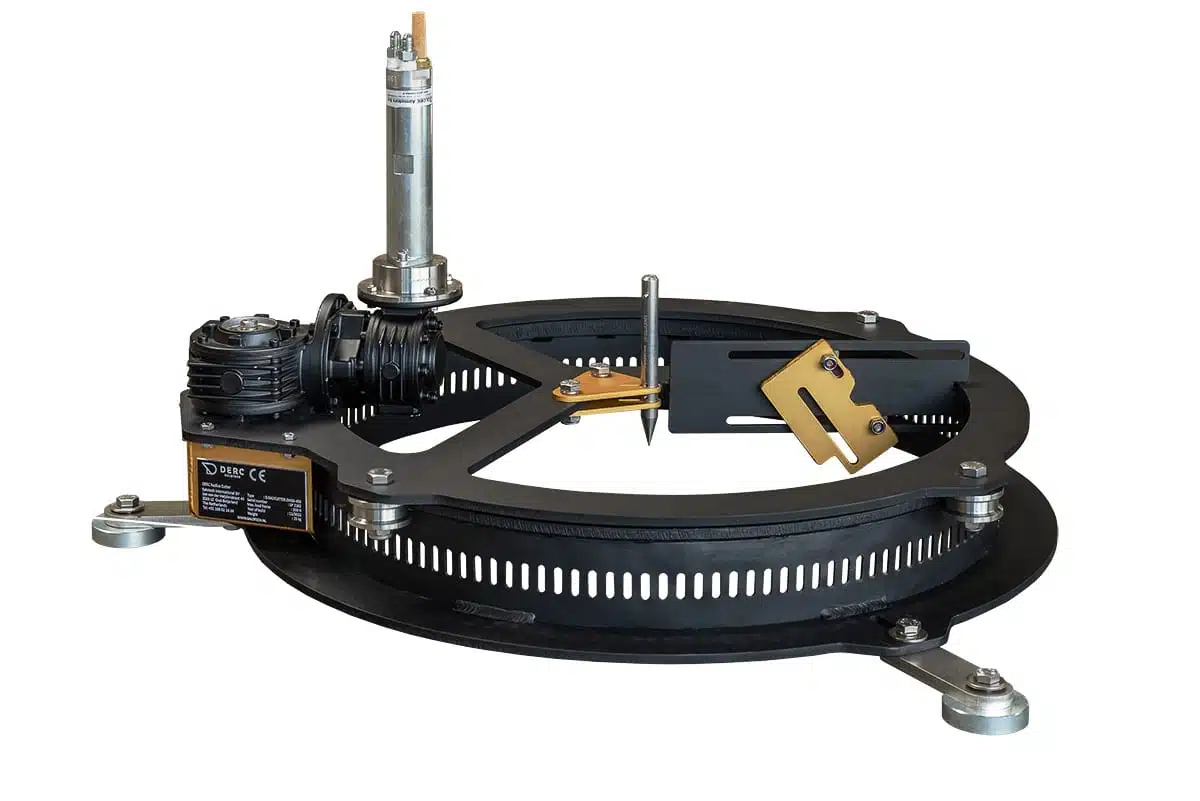

The DERC Radius Cutter is specially designed and constructed for the “cutting” of circular holes of ᴓ50-450 mm in various materials (e.g., vertical walls of tanks and vessels) using high pressure water with abrasive. The positioning frame is fixed with magnets on the surface to be cut so the cut is made very precise. The design and choice of materials ensure a long lifetime.
Features
+ Diameters from DN50-DN450
+ Adjustable feet/magnets for easy mounting
+ Center point for easy setting up
+ Cutting head adjustable in all directions
+ Air drive
In order to be able to work with the radius cutter all parts mentioned in the Basic Cutting Set are necessary.
Specifications
BASIC CUTTING SET
PART NO.
DESCRIPTION
D.RADCUTTER
Radius cutter DN50 – DN450
D.ABHOPPER.AS
Hopper assy. stainless steel trolley, complete with abrasive monitoring system and abrasive transport hose
CPA-AWCS
Control panel for abrasive cutting system, complete with 3 hoses
D.ABCUTTIN.AS
Cutting nozzle assembly complete 3000 Bar
OPTIONAL ACCESSORIES
PART NO.
DESCRIPTION
D.ABCUTTIN.03
Spare cone TC for cutting nozzle
D.ABCUTTIN.10.20
Spare slurry nozzle TC for cutting nozzle
965.xxx
HP nozzle M10 model 965
SPECIFICATIONS
SIZE
ᴓ500 x 425 mm
MAX. LOAD
350 N
MAX. PRESSURE
3000 bar
MAX. FLOW
10 – 25 lpm
CONNECTION
9/16” UHP
MOTOR / GEAR
Air motor with reduction
REDUCTION
1800:1
ROTATION SPEED
0,05 – 0,3 rpm
CUTTING RADIUS
25 – 225 mm
WEIGHT
25 kg
