Product

DERC Stingers

For flex lancing and general pipe cleaning

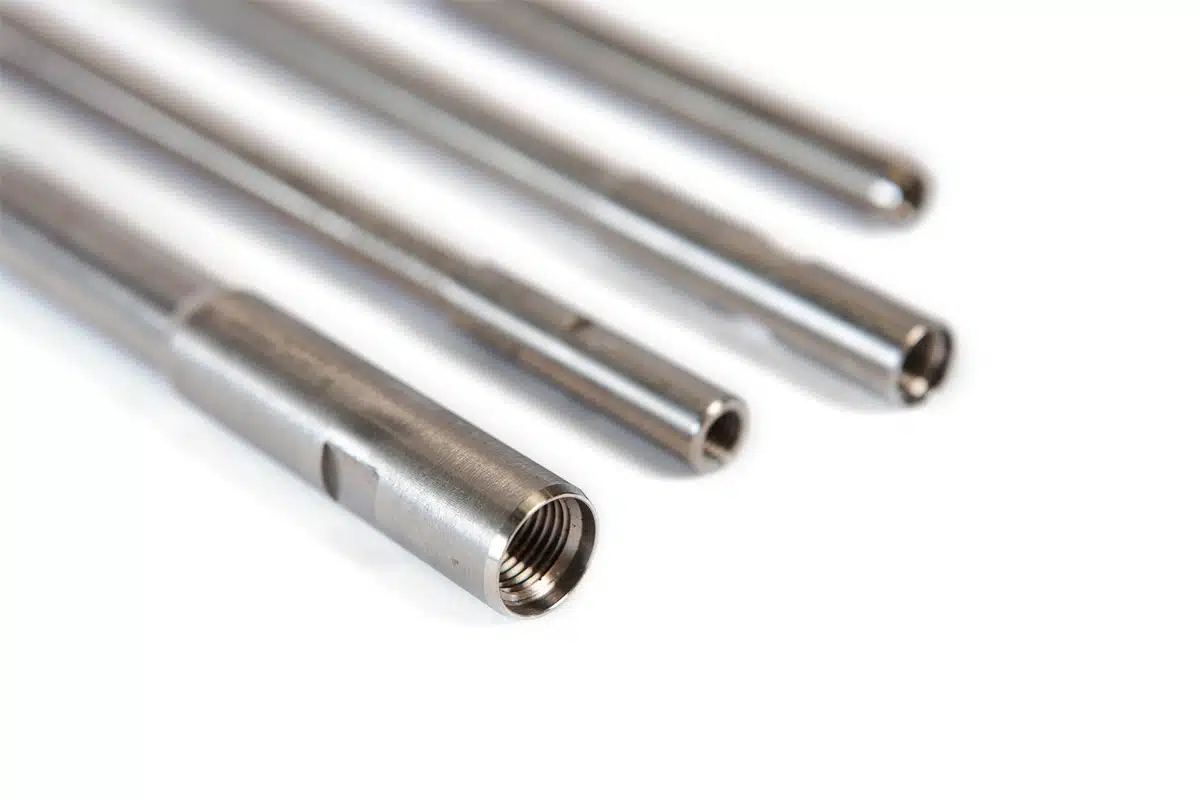

Stingers are stainless steel high pressure ridged lances which are used when flex lancing. They are used to prevent boomeranging and to prevent nozzle and hose damage by whipping of the hose exiting the tube. For safe and easy flex lancing we manufacture all necessary stingers.

Features

+ Stainless steel
+ Available with all kind of connections
+ Maximum working pressure of 3000 bar
+ Standard lengths available: 150, 200, 250, 300, 500 and 1000 mm
+ All delivered with test certificates

Applications

+ Manual flex lancing
+ (Semi) automatic flex lancing
+ General pipe cleaning

Specifications

STINGERS UP TO 1000 BAR

CONNECTION

DIAMETER

PART NO.

5/16" UNF

ø 10 mm

VL516MFxxxx

1/16" NPT

ø 10.5 mm

VL116NMFxxxx

1/8" NPT

ø 12 mm

VL18NMFxxxx

1/4" NPT

ø 16 mm

VL14NMFxxxx

1/2" NPT

hexagon 27 mm

VL12NMFxxxx

M24x1.5

hexagon 30 mm

VL24MFxxxx

3/4" NPT

ø 40 mm

VL34NMFxxxx

STINGERS UP TO 1500 BAR

CONNECTION

DIAMETER

PART NO.

M7x1

ø 9.4 mm

ST07MFxxxx

1/4" UNF LH

ø 9.5 mm

ST14UMFxxxx

1/8" BSP

ø 12 mm

ST18MFxxxx

3/8" UNF LH

ø 13 mm

ST38UMFxxx

1/4" BSP

ø 16 mm

ST14MFxxxx

9/16" UNF LH

ø 18 mm

ST916UMFxxxx

M24x1.5

hexagon 30 mm

ST24MFxxxx

M36x2

hexagon 46 mm

ST36MFxxxx

STINGERS UP TO 2800 BAR

CONNECTION

DIAMETER

PART NO.

3/8" UNF

ø 12.7 mm

ST38UHMFxxxx

9/16" UNF

ø 19 mm

ST916UHMFxxxx

M14 x1.5

ø 19 mm

STM14UHMFxxxx
