Product

DERC Tube Bundle Rollers

Safe Rotation of Pipe Bundles During Cleaning

The DERC Tube Bundle Rollers are heavy duty rollers for any bundle up to 25,000 kg. These rollers rotate pipe bundles during cleaning, for example in combination with the DERC Shell Side Blaster (SSB).

Set of Bundle Rollers

The DERC Tube Bundle Rollers are sold in sets of two. Each Bundle Roller contains four rollers for optimal bundle support. One Bundle Roller features driven rollers, while the other Bundle Roller follows and operates without drive. The drive engine can be powered either pneumatically or hydraulically. The set can be stacked for easy transport or storage.

Design

  • Stainless steel base frame
  • Heavy duty bearings
  • Gearbox
  • Motor
  • Chain tensioner
  • Chain guard
  • 4 steel zinc plated rollers

Features

  • Suitable for a large range of bundle sizes, without adjusting the rollers
  • Air or hydraulic driven
  • Forklift pockets for easy transport

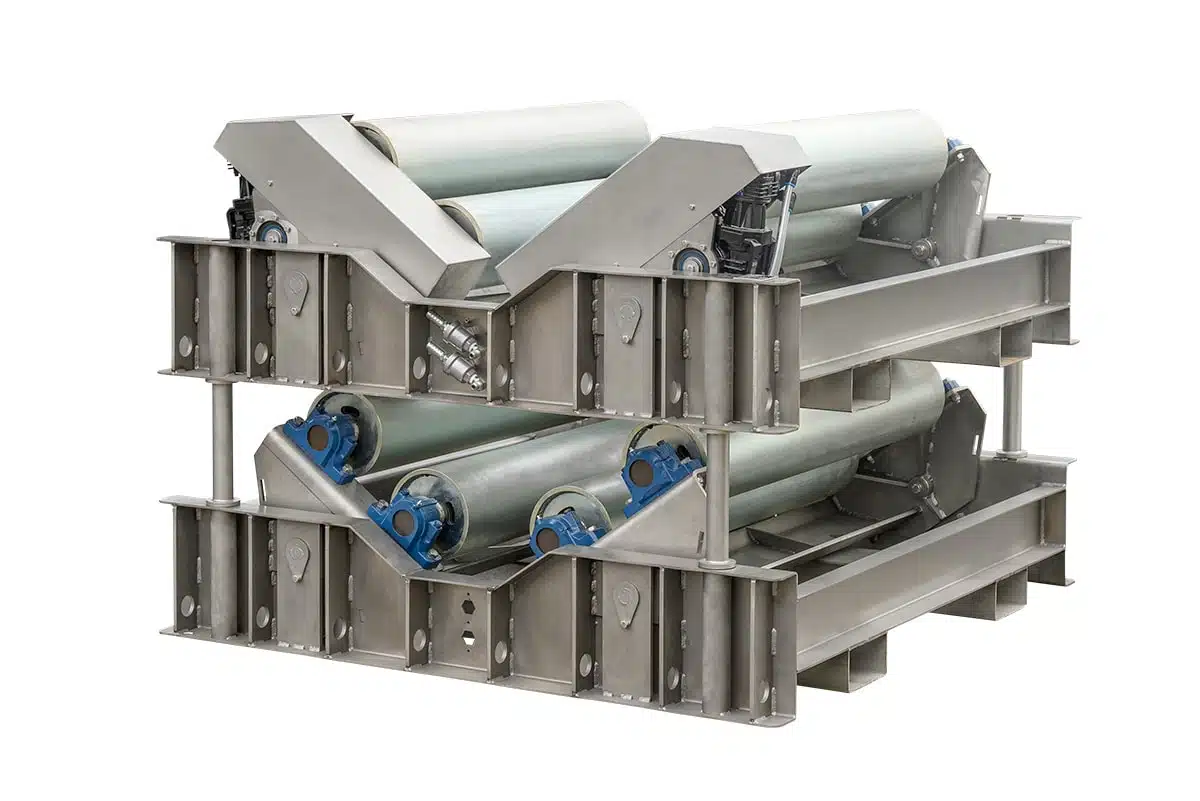

  • Stackable for efficient storage

Optional

The DERC Tuble Bundle Roller can be provided with wheel kits to slide the rollers on rails.

Specifications
Downloads

MAX LOAD.

25,000 kg

POWER

Air or hydraulic

BEARING

8 Heavy duty, grease filled bearings per set

APPLICATION

Tube bundle minimum diameter 450 mm up to 2000 mm

WEIGHT

Ca. 1000 kg per set (550 + 475)

DIMENSIONS (L x W x H)

1500 x 1500 x 650 mm

CONTROL PANEL

Optional
