Product

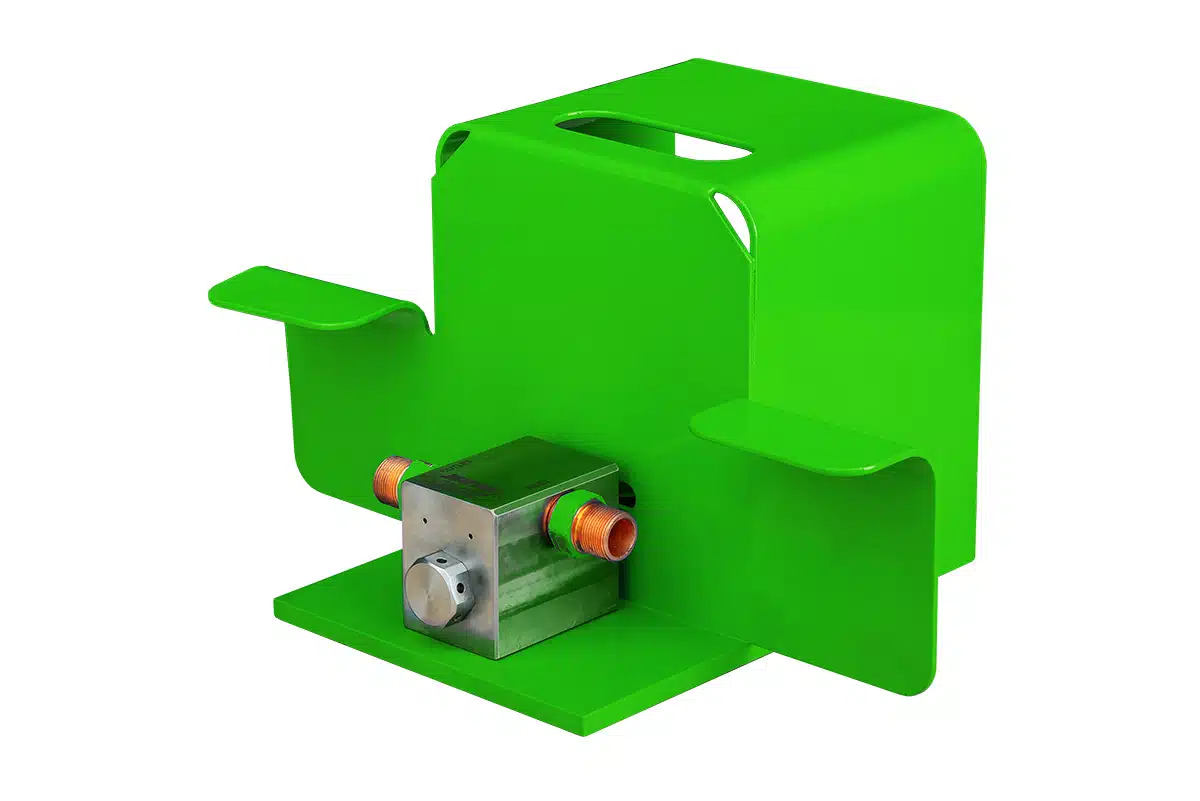

Dry Shut Foot Valve

Foot Valve for High Pressure Cleaning

Ideal for a variety of (manual) high pressure tube cleaning applications. This dry shut foot valve allows the operator to have complete control of the pressure at all times. We offer dry shut style foot valves with a maximum pressure up to 1000 and 1400 bar.

Operation

Dry shut foot valves do not dump water when the trigger is released. Suitable for applications where water spillage and disposal are concerns.

Applications

  • Manual high pressure cleaning activities
  • Flex lancing
  • Pressure control

Features

  • Safety Cage protect operator
  • Built in “wings” protect the HP end fittings
  • Quick replacement of cartridge (30 seconds)

Color Codes

All dry shut foot valves are color coded for these pressure ratings:
Green: 1000 bar
Blue: 1400 bar

Specifications

Dry Shut Foot Valves

Part No.

Max. Pressure

Max. Flow

Inlet & Outlet Connection

Cartridge

59377

1000 bar

130 lpm

1/2" NPT Female

60419

59378

1400 bar

130 lpm

20K Port Female

60420
