Product
DERC Speed Regulated Pipe Cleaner SPC
Cleaning Industrial Pipes with Multiple Elbows
DERC Salotech has developed the DERC Speed Regulated Pipe Cleaner (SPC) for high pressure water jet cleaning of bended pipes. The nozzles of this industrial pipe cleaner are water driven and suitable for working pressures up to 1500 Bar. They have an easy adjustable rotation speed and are provided with a hardened protection ring. The compact, stainless steel design ensures that this nozzle can unplug, polish or run longer lines without any problem.

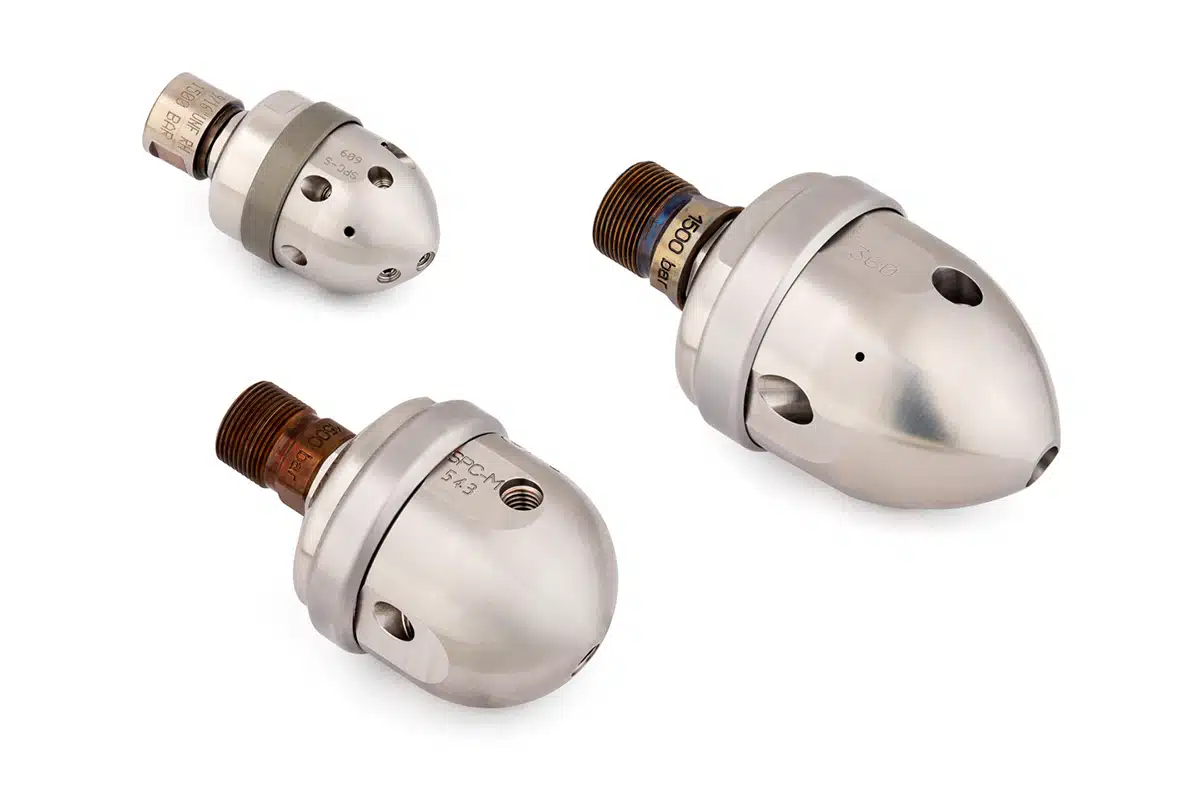

Three sizes: SPC-L, SPC-M and SPC-S
The rotating speed can be adjusted, depending on the level of deposit. DERC SPC is available in three sizes: SPC-L, SPC-M and SPC-S. The SPC-L is designed and constructed for waterblast cleaning of indudstrial pipes as small as 6” with elbows and up. The SPC-M is for cleaning 4” pipes. And the SPC-S is made for the same work in pipes as small as 2” with elbows.
Centralizer
The DERC SPC Centralizer makes it possible to centre the DERC SPC, this is protecting the rotating nozzle and for achieving the best cleaning result.
SPC Toolkit
The DERC SPC comes with a special tool for manual setting of the braking /speed adjustment.

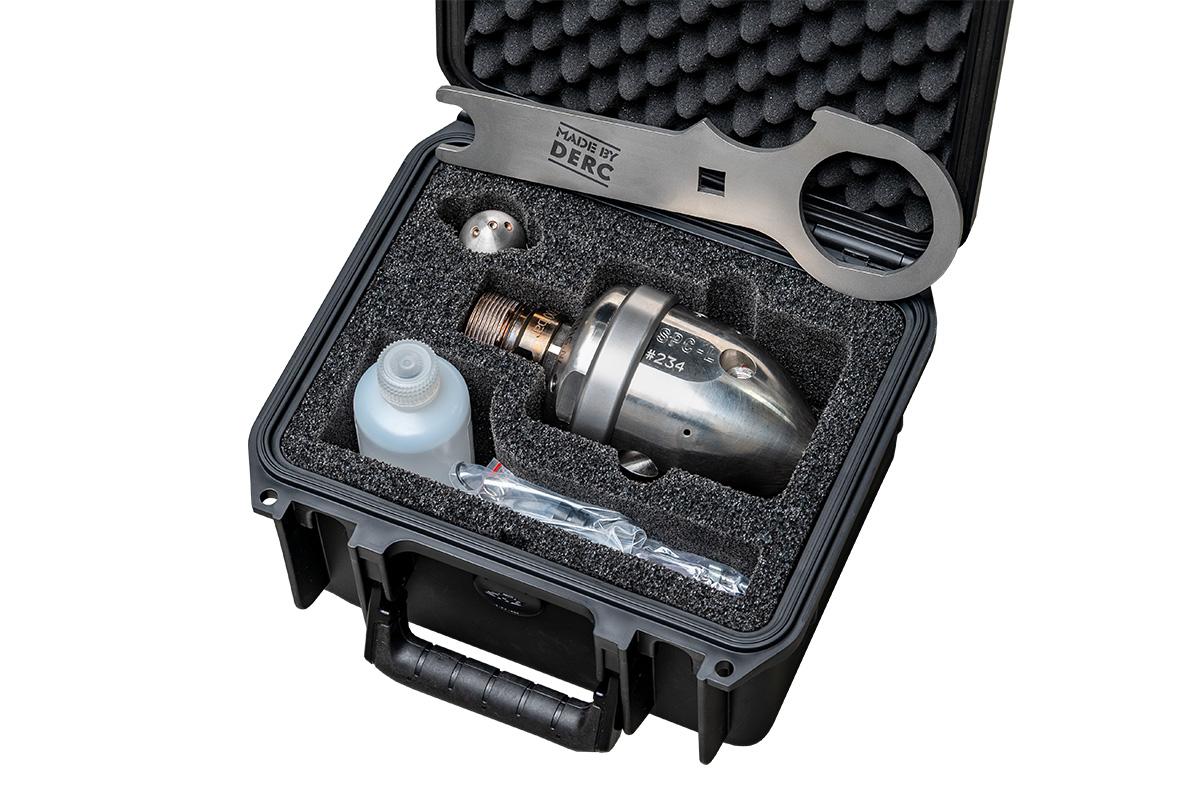

SPC Storage Case
To securely transport your SPC we provide an (optional) storage case.
Features
+ 2” – 4” – 6” model
+ Compact and short design
+ Adjustable rotation speed by an adjusting nut
+ Long life of high pressure seals
+ Max. workingpressure 1500 Bar/ 22K
SPC-S
MAX. PRESSURE
1000 bar / 15K
1500 bar / 22K
FLOW
30 - 50 l/min / 8-13gpm
30 - 50l/min / 8-13gpm
INLET CONNECTION
¼” NPT
¼” BSP
3/8” UNF LH
3/8” UNF RH
9/16” UNF LH
9/16” UNF RH
ROTATION SPEED
100 - 300 RPM (adjustable)
100 - 300 RPM (adjustable)
PIPE
2” – 4”
2” – 4”
INSERTS
M4 (046.xxx)
M4 (046.xxx)
DIAMETER
Ø 35 mm
Ø 35 mm
SPC-M
MAX. PRESSURE
1000 bar / 15K
1500 bar / 22K
FLOW
50 - 115 l/min / 13-30gpm
50 -100 l/min / 13-26gpm
INLET CONNECTION
3/8” NPT
M24 x 1.5 DKOS
ROTATION SPEED
50-300 RPM (adjustable)
50-300 RPM (adjustable)
PIPE
4”- 8”
4”- 8”
INSERTS
5 x 1/8” NPT (DI 18)
5 x 1/8” NPT (DI 18)
DIAMETER
Ø 69 mm
Ø 69 mm
SPC-L
MAX. PRESSURE
1000 bar / 15K
1500 bar / 22K
FLOW
55 - 210 l/min / 14.5– 55.5gpm
50 -170 l/min / 13 – 45gpm
INLET CONNECTION
1/2” NPT
M24 x 1.5 DKOS
M36 x 2 DKOS
9/16” MPF (13/16”)
ROTATION SPEED
50 - 300 RPM (adjustable)
50 - 300 RPM (adjustable)
PIPE
6”- 12”
6”- 12”
INSERTS
5 x 1/4” NPT (DSI 14)
5 x 1/4” NPT (DSI 14)
DIAMETER
Ø 95 mm
Ø 95 mm
