Dump Style Foot Valve

Foot Valve for High Pressure Cleaning

Ideal for a variety of (manual) high pressure tube cleaning applications. This dump style foot valve allows the operator to have complete control of the pressure at all times. We offer foot valves up to 1000, 1400 and 2800 bar.

Operation

When activating the Dump Style Foot Control the dump valve (spring return) of the Foot Control will be closed and the system will be pressurized. By deactivation of the Foot Control the water will be dumped by the dump valve. With this method the used hose or high pressure gun can never be unwanted pressurized.

Applications

• Manual high pressure cleaning activities
• Flex lancing
• Pressure control

Features

• Safety Cage protect operator
• Built in “wings” protect the HP end fittings
• Threaded diffuser to route dump water for collection or disposal
• Quick replacement of cartridge (30 seconds)

Color Codes

All dump style foot valves are color coded for these pressure ratings:

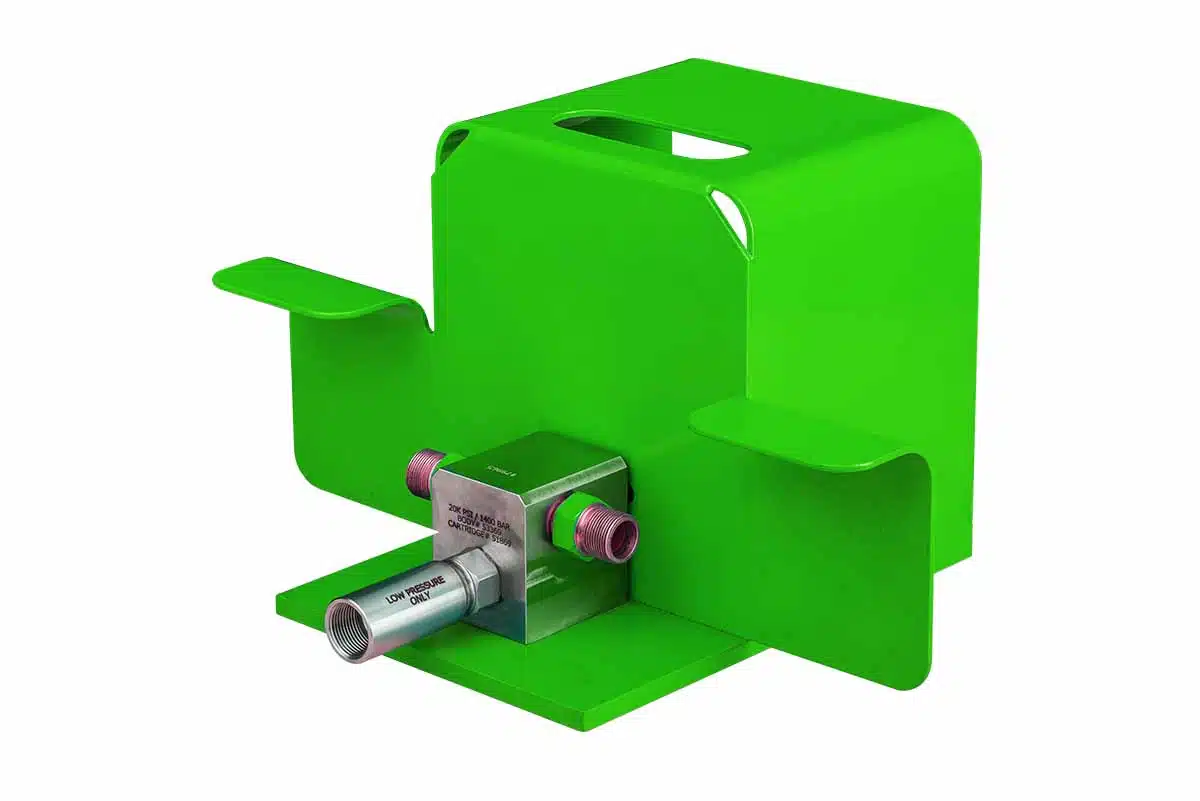

Green: 1000 bar
Blue: 1400 bar

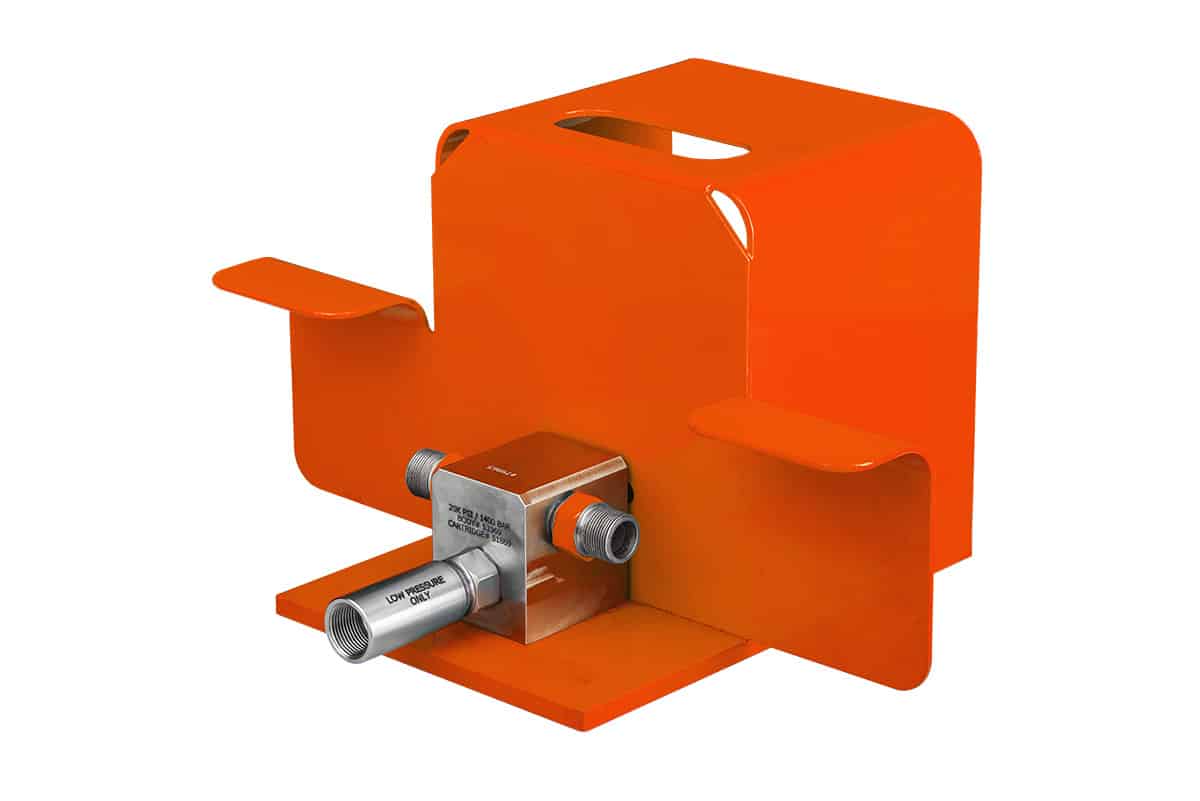

Orange: 2800 bar
