Product
Fan Jet Nozzle Model 08 & 019
Model 08 & 019, Till 2000 Bar

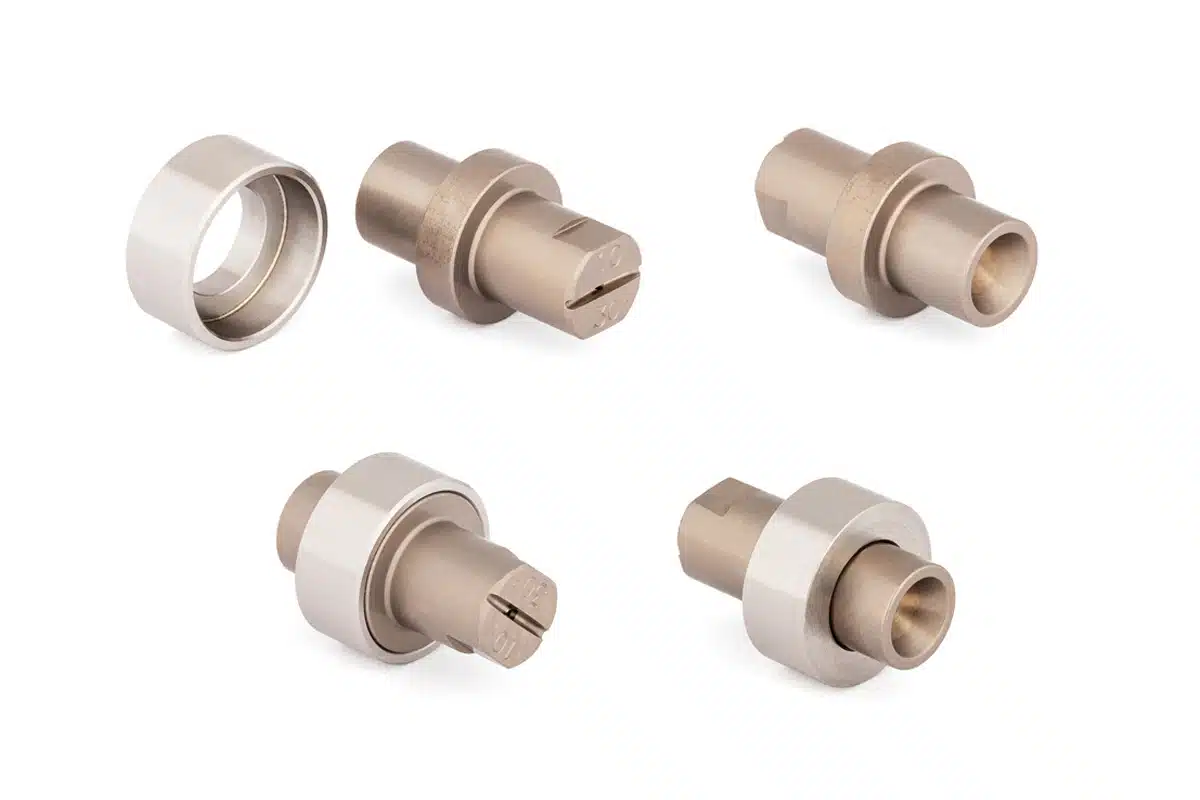

The Fan Jet Nozzle Model 08 and 019 are made from hard and stainless steel. The strong fan gives you a high effective result. The Fan Jet Nozzle Model 08 and 19 are standard available from 0,25 diameter till 5,0 mm diameter, other diameters are on request available. The nozzle is used for a lot of jetting gun applications.
Specifications
Fan Jet Nozzle Model 08
PART NO.
08.xxx
DIAMETER
From Ø 0,25 mm till 5,00 mm
LxØD/Ød (mm)
20x14/8
ANGLE
From 10 till 45°
Other diameters are available on the request
Fan Jet Nozzle Model 19
PART NO.
19.xxx
DIAMETER
From Ø 0,25 mm till 5,00 mm
LxØD/Ød (mm)
20x12/8
ANGLE
From 15 till 45°
Other diameters are available on the request
Adaptor 19 -> 08
PART NO.
FSP.04.01
SPECIAL TOOL
AD.04.01
O-ring Back Up Ring
PART NO.
DESCRIPTION
OR.04.19
O-ring model 4/19
OR.01.08
O-ring model 1/8
BA.01.08
B-ring Type 1/8
