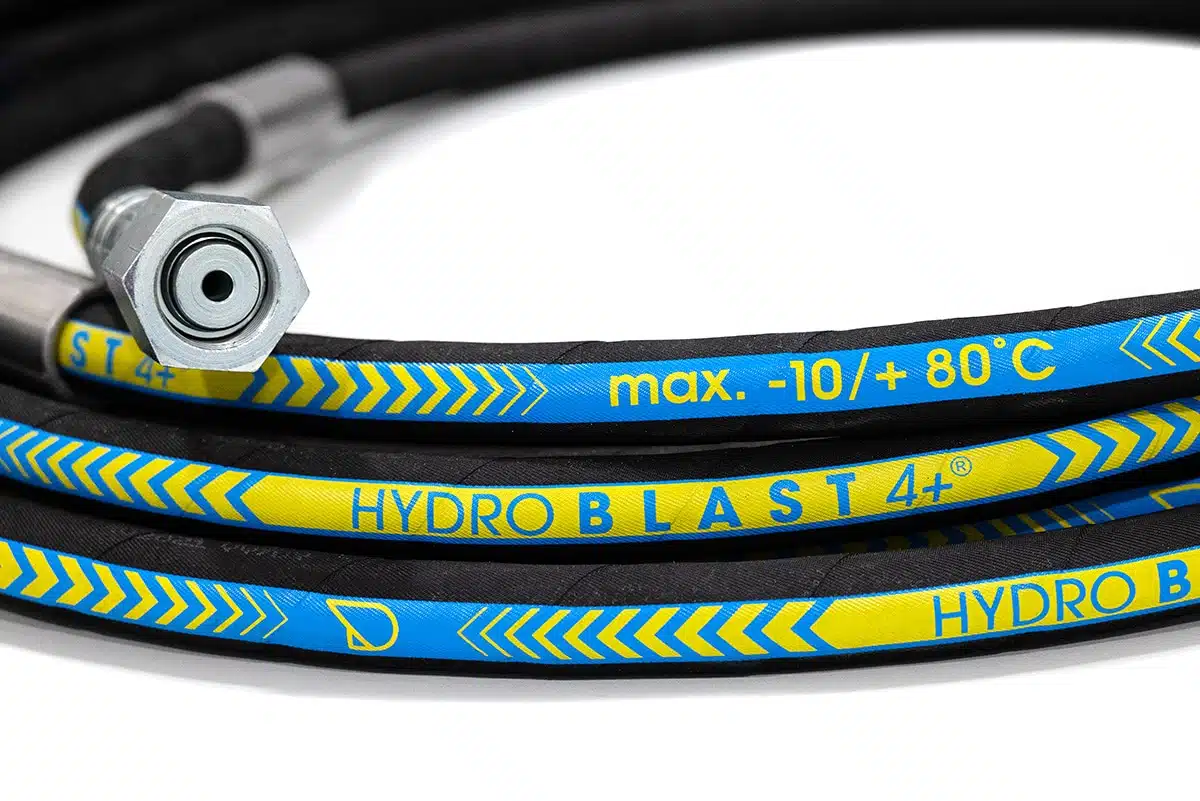

DERC HYDROBLAST 4+ Hoses
Rubber high pressure hose
The DERC HYDROBLAST 4+ industrial high pressure hose is specially developed for the high pressure cleaning industry.
Up to 1100 Bar
The hose is capable of working pressures until 1100 bar and is produced with only 4 spiral layers, so a 3/4″ hose is still manageable.
Light Weight and Flexible
The hose has a short bend radius, is light weight and can be used with a water temperature up to 80° C.
Versatile
The Hydroblast 4+ hose is available with NPT or metric couplings and with 90º bended couplings M24 and M36.
HYDROBLAST 4+ features
- Suitable for high temperature till 80º C
- Light weight and flexible
- Resistant outer core
- Certified according the latest NEN standards
- Available with NPT or metric couplings
- Available with 90º bended couplings M24 and M36
- Available in 3/8” (DN10), 1/2” (DN12) and 3/4” (DN20)
- Bigger bore couplings, less pressure loss
- Available with safety marking rings or safety hose catcher rings
Specifications
HB4T.10.24.20
HB4T12.24.20
HB4T.20.36.20
INSIDE DIAMETER
3/8" (9.5 mm)
1/2" (12.6 mm)
3/4" (19 mm)
OUTSIDE DIAMETER
20.4 mm
24.6 mm
32.0 mm
BEND RADIUS
210 mm
230 mm
250 mm
LENGTH
20 - 100 m
20 - 100 m
20 - 60 m
MAX. PRESSURE
1250 bar
1100 bar
1100 bar
TEST PRESSURE
1875 bar
1650 bar
1650 bar
BURST PRESSURE
3125 bar
2750 bar
2750 bar
WEIGHT
0.88 kg/m
1.22 kg/m
1.87 kg/m
