Product

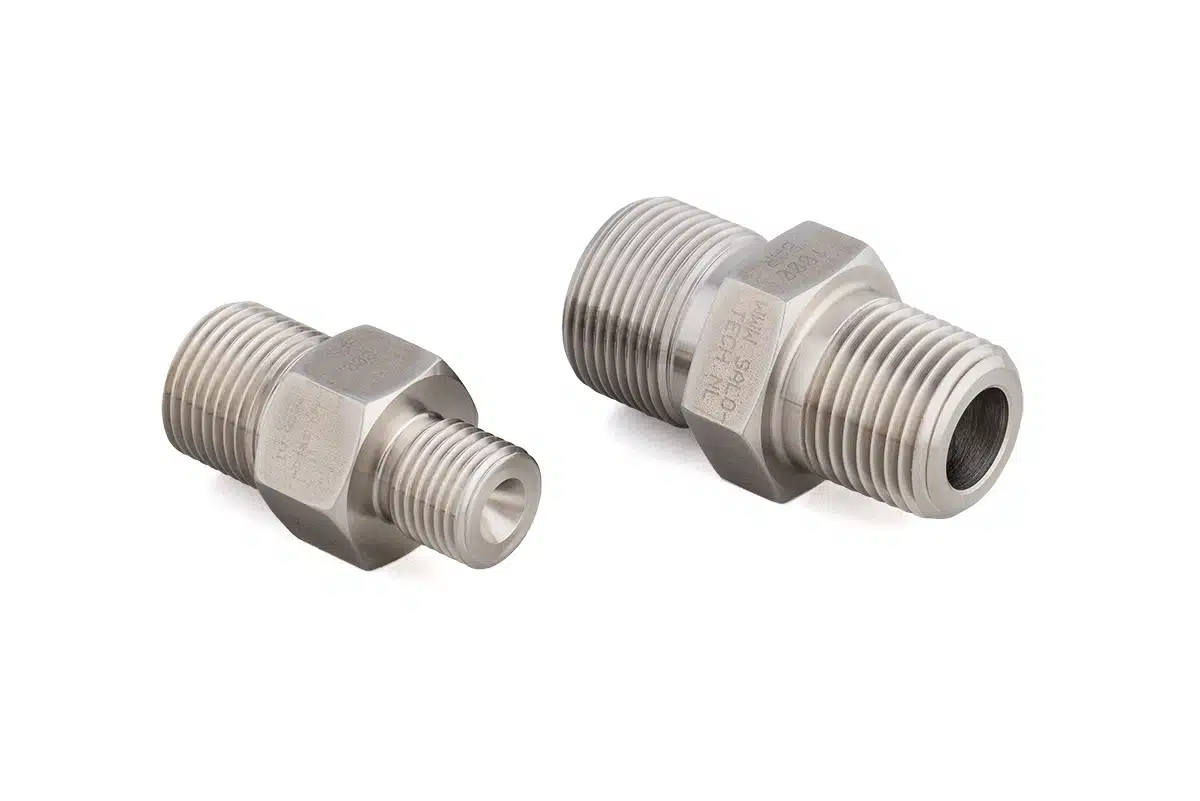

Reducing Adapters

High Pressure Fittings

Reducing adapters are made of stainless steel and are designed by our engineers. Everything produced by DERC is made according to drawings and has its own unique part number. It is designed according to the latest quality standards and requirements for the high pressure water jetting, oil and gas industry. For safety and traceability all our products are marked with a part number, maximum working pressure and thread connection.

Manufacturing

Reducing adapters are manufactured in our up to date machine park according to the latest quality standards. All necessary control and measurement checks have been executed before the products leave our factory. Our production staff is trained in the latest production standards and techniques.

Testing and Certificates

Our products undergo hydro static pressure tests to ensure they withstand the maximum working pressure which they are designed for. DERC reducig adapters can be supplied with a test certificate, if required.

Quick Delivery

The table below shows just a sample of what we can provide. It consists of our standard product range that we can deliver quickly from stock. But there are endless possibilities with thread type and size that can be engineered and manufatured in our factory.

Specifications

ADAPTER MALE x MALE / METRIC

THREAD 1

THREAD 2

MAX. PRESSURE

PART NO.

M7x1

5/16" UNF

1000 bar

NI.07MV.516UM

M22x1.5

M24x1.5

1500 bar

NI.22M.24M

M22x1.5

M24x1.5 flat

1500 bar

NI.24M.24MV

M24x1.5

3/4"MP

1500 bar

NI.24M.M12M

M24x1.5

3/4"NPT

1000 bar

NI.24M.34NM

M24x1.5

M36x2

1500 bar

NI.24M.36M

M24x1.5

M36x2 flat

1500 bar

NI.24M.36MV

ADAPTER MALE x MALE / BSP

THREAD 1

THREAD 2

MAX. PRESSURE

PART NO.

1/8" BSP

1/4" BSP

1500 bar

NI.18M.14M

1/4" BSP

M24x1.5

1500 bar

NI.14M.24M

1/4" BSP

3/8" BSP flat

1500 bar

NI.14M.38MV

1/4" BSP

13/16 UNF

1500 bar

NI.14M.M9M

3/8" BSP

1/2" NPT

1000 bar

NI.38M.12NM

3/8" BSP

M24x1.5

1250 bar

NI.38M.24M

3/8" BSP flat

M24x1.5

1250 bar

NI.38MV.24M

1/2" BSP

M22x1.5

1500 bar

NI.12M.22M

1/2" BSP

M24x1.5

1500 bar

NI.12M.24M

ADAPTER MALE x MALE / NPT

THREAD 1

THREAD 2

MAX. PRESSURE

PART NO.

1/4" NPT

1/4" BSP

1000 bar

NI.14NM.14M

3/8" NPT

M24x1.5

1000 bar

NI.38NM.24M

1/2" NPT

1/2" BSP

1000 bar

NI.12NM.12M

1/2" NPT

M24x1.5

1000 bar

NI.12NM.24M

3/4" NPT

M36x2

1000 bar

NI.34NM.36M

ADAPTER MALE x MALE / UNF

THREAD 1

THREAD 2

MAX. PRESSURE

PART NO.

9/16" UNF

M24x1.5

1500 bar

NI.M9M.24M

ADAPTER MALE x FEMALE / METRIC

THREAD 1

THREAD 2

MAX. PRESSURE

PART NO.

M24x1.5 M

3/4" NPT F

1000 bar

NI.24M.34NF

ADAPTER MALE x FEMALE / BSP

THREAD 1

THREAD 2

MAX. PRESSURE

PART NO.

1/8" BSP F

M24x1.5 M

1500 bar

NI.18FV.24M

1/4" BSP F

3/8" NPT M

1000 bar

NI.14FV.38NM

1/4" BSP M

3/8" BSP F

1500 bar

NI.14MV.38F

1/4" BSP F

M24x1.5 M

1500 bar

NI.14FV.24M

1/4" BSP F

3/8" BSP M flat

1500 bar

NI.14FV.38MV

3/8" BSP F

M24x1.5 M

1500 bar

NI.38FV.24M

1/2" BSP F

M24x1.5 M

1500 bar

NI12FV.24M

ADAPTER MALE x FEMALE / NPT

THREAD 1

THREAD 2

MAX. PRESSURE

PART NO.

1/16" NPT F

M7x1 M

1000 bar

NI.116NF.07M

1/4" NPT M

1/4" BSP F

1000 bar

NI.14NM.14FV

1/2" NPT F

M24x1.5 M

1000 bar

NI.12NF.24M

3/4" NPT F

M36x2 M

1000 bar

NI.34NF.36M

ADAPTER FEMALE x FEMALE / NPT

THREAD 1

THREAD 2

MAX. PRESSURE

PART NO.

1/4" NPT

1/4" BSP

1000 bar

NI.14NF.14F

1/4" NPT

3/8" BSP

1000 bar

NI.14NF.38F
