DERC Hose Catcher VE.40000

Safe manual high pressure cleaning of vertical heat exchangers

DERC Salotech designed a complete line of Hose Catchers, which provide a safe way of cleaning pipes manually. When cleaning pipes and tubes there is a risk the nozzle could come out of the pipe backwards. To protect the operator DERC Salotech has created a safety solution: DERC Hose Catcher.

The DERC Hose Catcher is available in different types:

VE.20000 for cleaning pipe lines
VE.21000-22000 for cleaning pipes in small spaces
VE.40000 for cleaning vertical heat exchangers
VE.70500 for cleaning heat exchangers
VE.80000 for cleaning larger pipes (up to 400 mm OD)

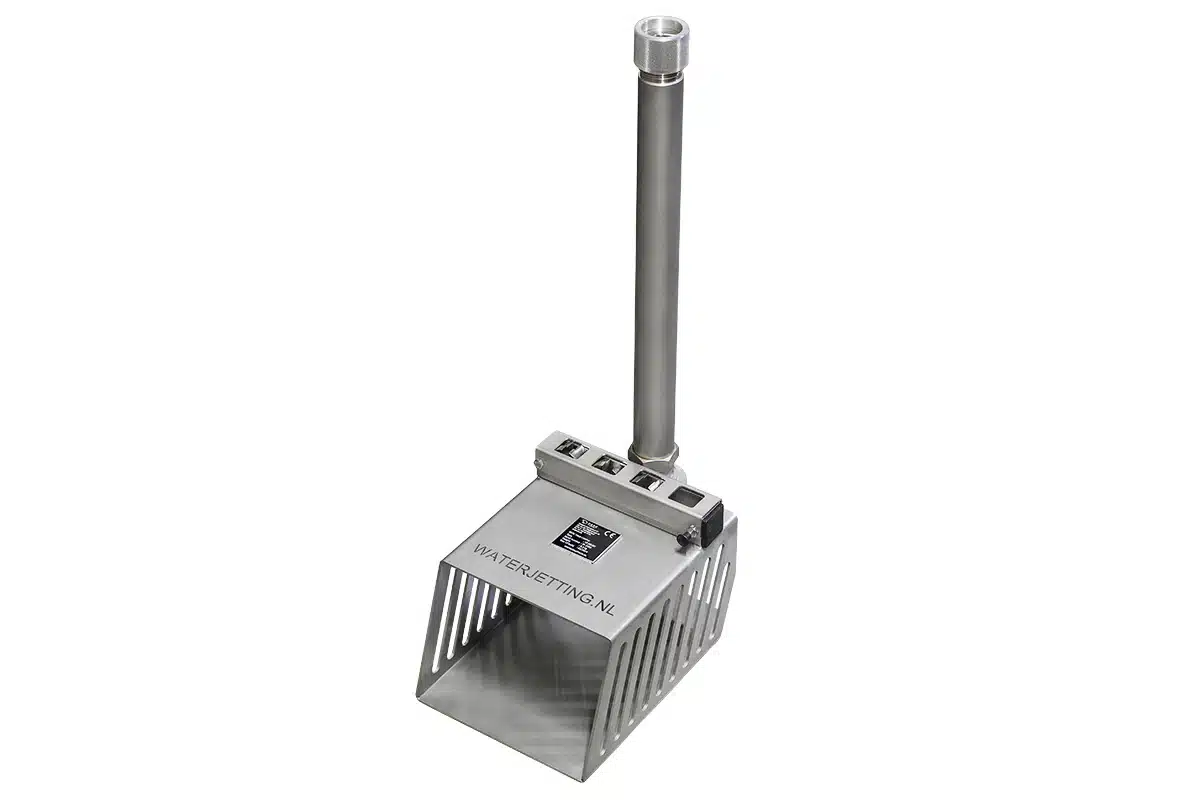

VE.40000

The DERC Hose Catcher type VE.40000 is specially constructed as an adjustable accessory tool for the safe manual high pressure cleaning of vertical heat exchangers with flex lances. Hoses of different diameters can be used due to various hose stoppers.

Features

+ Main tube available in various lengths: 350, 500, 750 and 1000 mm
+ Stainless steel construction
+ Suitable for 4 / 5 / 6 / 8 mm hoses

Hose Stopper

Every Hose Catcher, except the VE.20000, is equipped with Hose Stoppers for different flex hoses diameters. The Hose Stopper ensures that the hose stops at the right moment. The stoppers can be stored in the cassette, which is located on the Hose Catcher, to keep everything together.
