Product

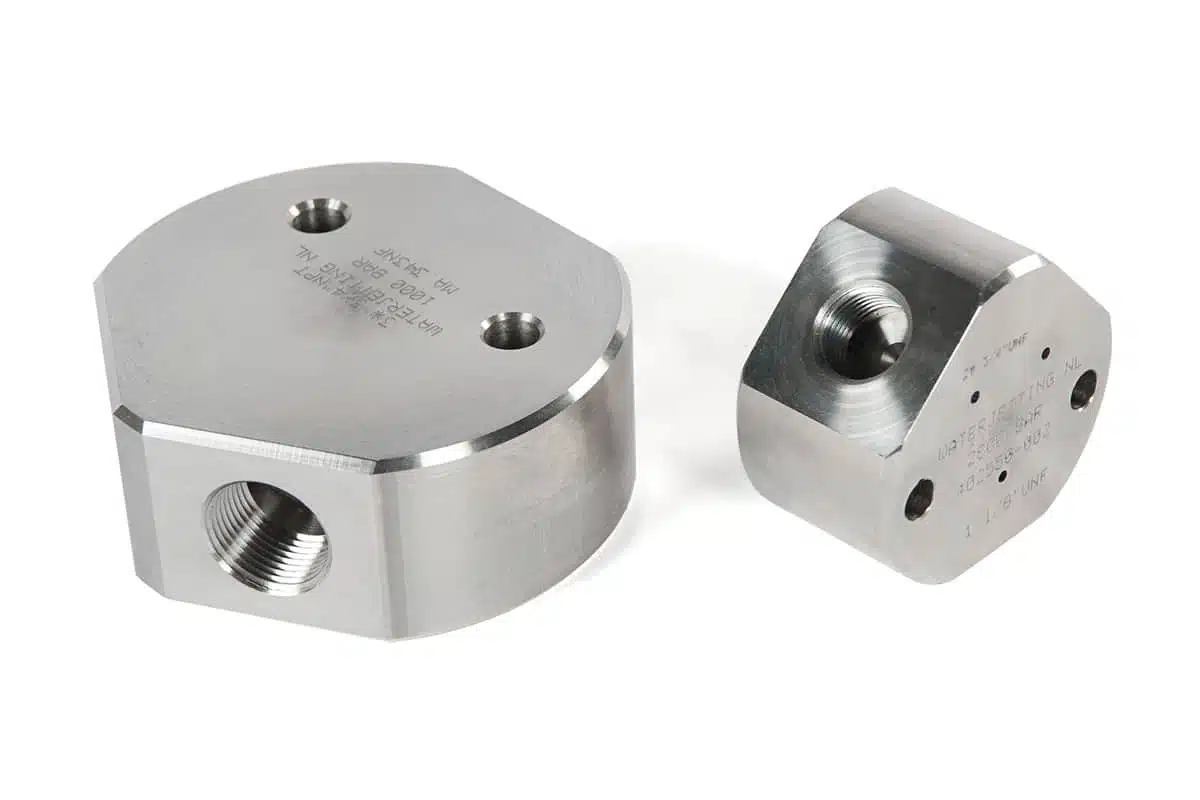

DERC Manifolds
High pressure fittings
For all kind of applications DERC Salotech manufactures multi port manifolds, y-pieces and custom made solutions.
Features
+ To connect or divide high pressure water flows
+ Stainless steel
+ Working pressure up to 3000 bar
+ Supplied with test certificate (if required)
Avialable options
The table below shows just a sample of what we can provide. It consists of our standard product range that we can deliver quickly from stock. But there are endless possibilities with thread type and size that can be produced in our factory.
Specifications
MANIFOLDS
CONNECTION
SIZE
MAX. PRESSURE
PART NO.
3x 3/4" NPT F (Y)
Ø 110 x 44 mm
1000 bar
MA.343NF
3x 9/16" MP F (Y)
Ø 110 x 44 mm
1500 bar
MA.3916MP
3x 1/2" BSP F (Y)
Ø 80 x 35 mm
1000 bar
MA.123F
1x M36x2 F - 3x 1/4" NPT F
Ø 55 x 70 mm
1000 bar
MA.3-TLE36F
Support
Our expert staff are available Monday to Friday from 8:00 AM - 4:30 PM (CET) to answer all your questions about this product.
