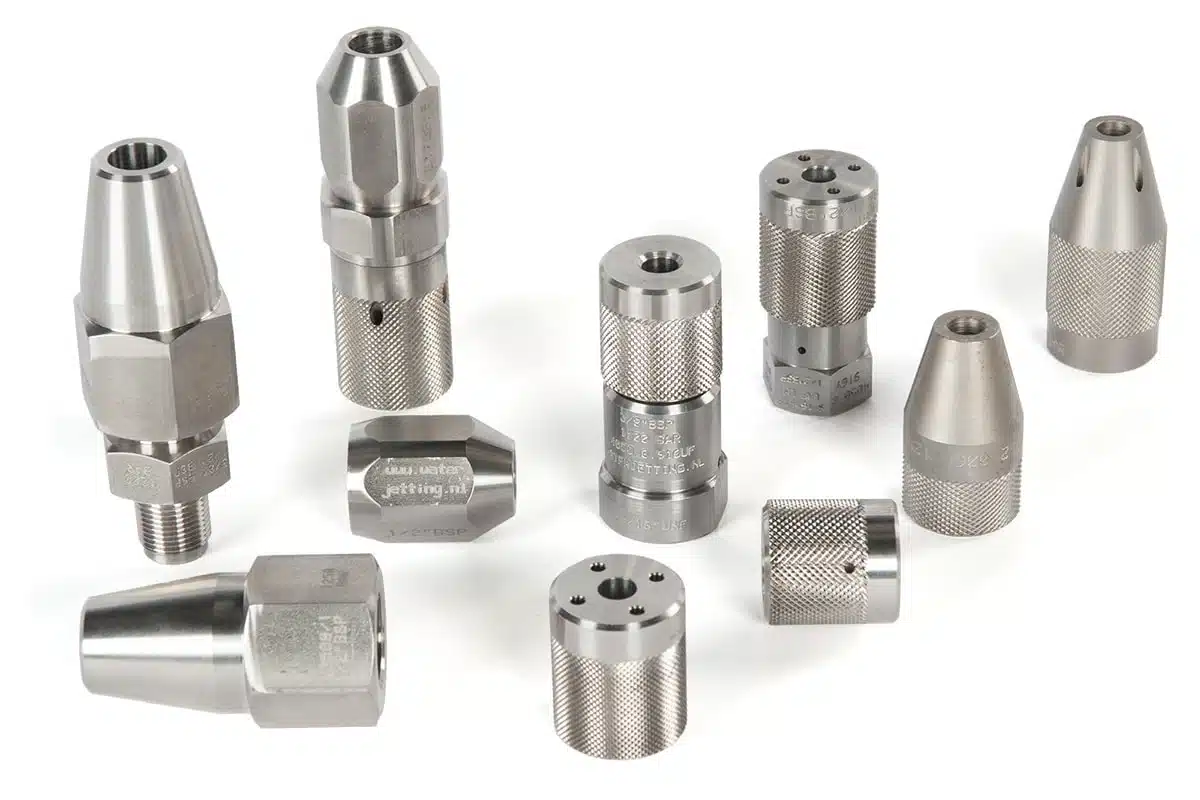

DERC Nozzle Holders & Caps
The perfect fit for any nozzle
DERC Salotech manufactures a wide range of stainless steel nozzle holders and caps with a working pressure up to 2000 bar.
Available options
The table below shows just a sample of what we can provide. It consists of our standard product range that we can deliver quickly from stock, both nozzle holders for nozzles and all kind of tank cleaning heads. There are endless possibilities with thread type and size that can be produced in our factory.
Specifications
NOZZLE HOLDERS
NOZZLE TYPE
THREAD
LENGTH
SPANNER
MAX. PRESSURE
PART NO.
T4/T19 (3/8" BSP M)
3/8" BSP F
55 mm
23 mm
1200 bar
4050.6.38F
T4/T19 (3/8" BSP M)
3/8" NPT F
60 mm
27 mm
1000 bar
4050.6.38NF
T4/T19 (3/8" BSP M)
13/16" UNF
55 mm
27 mm
1500 bar
4050.6.916UF
T4/T19 (3/8" BSP M)
9/16" -18 UNF
50 mm
27 mm
1500 bar
4050.6.916Y
T1/T8 (1/2" BSP M)
3/8" NPT F
50 mm
27 mm
1000 bar
4050.8.38NF
T1/T8 (1/2" BSP M)
9/16" UNF-18
50 mm
24 mm
2000 bar
4050.8.916Y
T1/T8 (1/2" BSP M)
M14x1.5 F
50 mm
24 mm
2000 bar
4050.8.M14Y
NOZZLE CAPS
NOZZLE TYPE
THREAD
LENGTH
SPANNER
MAX. PRESSURE
PART NO.
T4/T19
3/8" BSP F
29 mm
27 mm
1500 bar
4050.2.005
T1/T8
1/2" BSP F
34 mm
28 mm
2000 bar
4050.2.007
T226
1/2" BSP F
62 mm
32 mm
1250 bar
W3508
T4/T19
M24x1.5
40 mm
32 mm
1200 bar
W4149
