Product
DERC Positioning Tools TWK
Complete positioning for tank cleaning units
The DERC Positioning Tools makes it easy to position and fixate your tank cleaning head. Our tools are specifically designed and built to position a cleaning head in a vessel or tank to be cleaned. Easy to use and easy to mount on the manhole.
Two models
The PL.20000-L is equipped with a high pressure rigid lance. The PL.10000-H-M2 comes with a hollow guide tube, to fit a high pressure hose.
Features
+ Inspection cover
+ Stainless steel construction
+ Place at an angle
Specifications

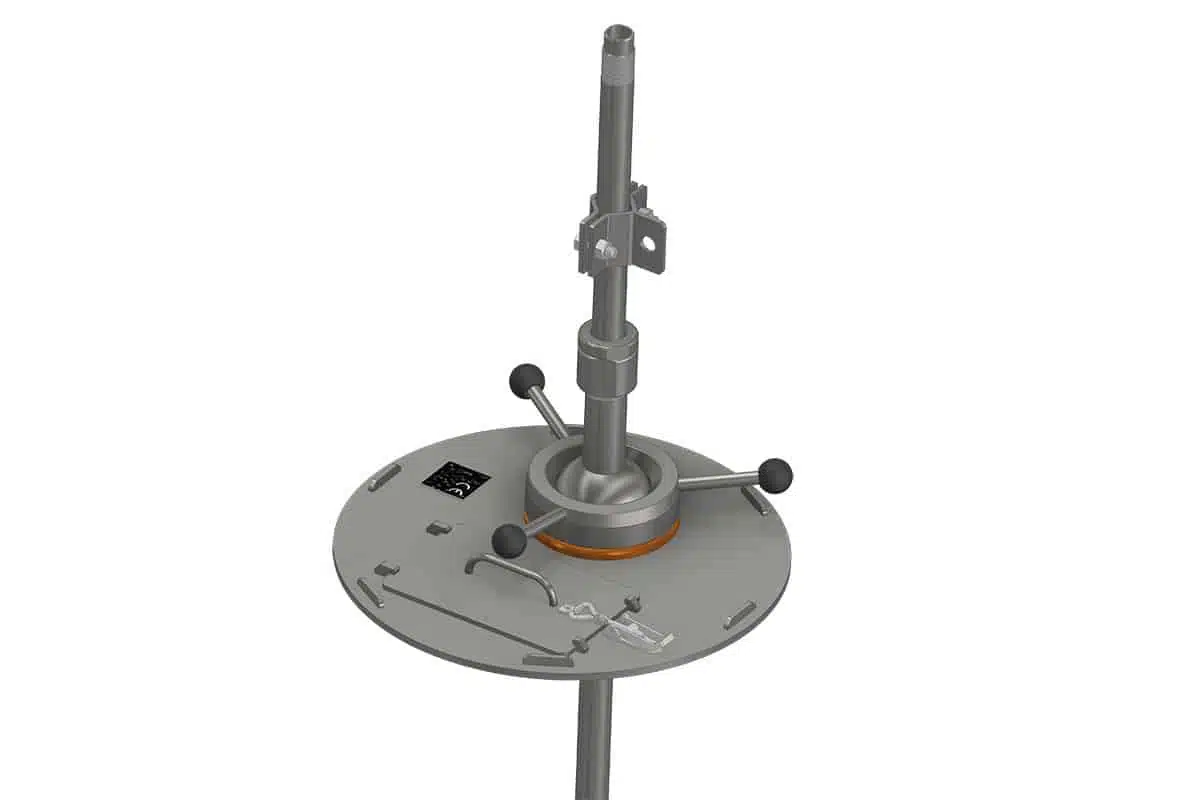

MODEL PL.20000-L
MAX. WORKING PRESSURE
MODEL LANCE
ANGLE ADJUSTMENT
DIAMETER FLANGE
CONNECTIONS
1500 bar
1" high pressure lance, max. 6 m length
2x 45°
450 mm*
1" BSP cleaning head, o-ring sealing on both sides. Connections nipples for all different tank cleaning units and hose connections
MODEL PL.10000-H-M2
MAX. WORKING PRESSURE
MODEL LANCE
ANGLE ADJUSTMENT
DIAMETER FLANGE
CONNECTIONS
Depending on high pressure hose
Max. 8 m length
2x 45°
650 mm*
Bronze guide bush on both sides, to protect the high pressure hose
