Product
DERC RCS-UHS Mini
Rugged design, easy to maintain
DERC RCS Ultra High pressure Swivels are designed to transport high pressure water from a stationary line to a rotating or twisting assembly.
Up to 3000 Bar
The RCS-UHS Mini is specially designed for water jetting guns with maximum pressure up to 3000 bar.
Features
- Heavy duty stainless steel construction
- Up to 3000 bar working pressure
- Up to 2000 RPM
- Low maintenance
- Metric and UNF connections
- Lightweight and compact
- Low torque, easy to rotate
Applications
- High pressure guns
- DERC Hose Collector Drum
Specifications
DERC RCS-UHS MINI OPTIONS
INLET CONNECTION
SHAFT CONNECTION
LENGTH
DIAMETER
MAX. PRESSURE
MAX. FLOW
PART NO.
M26 x 1.5 F
M14 x 1.5 LH M
125 mm
35 mm
3000 bar
25 lpm
RCS-UHS-MINI.26F.M14ML
M26 x 1.5 F
9/16" - 18 UNF LH M
135mm
35 mm
3000 bar
25 lpm
RCS-UHS-MINI.26F.916UML
M26 x 1.5 F 90°
M14 x 1.5 LH M
138 mm
35 mm
3000 bar
25 lpm
RCS-UHS-MINI.26F.M14ML-90
M26 x 1.5 F 90°
9/16"- 18 UNF LH M
148 mm
35 mm
3000 bar
25 lpm
RCS-UHS-MINI.26F.916UML-90

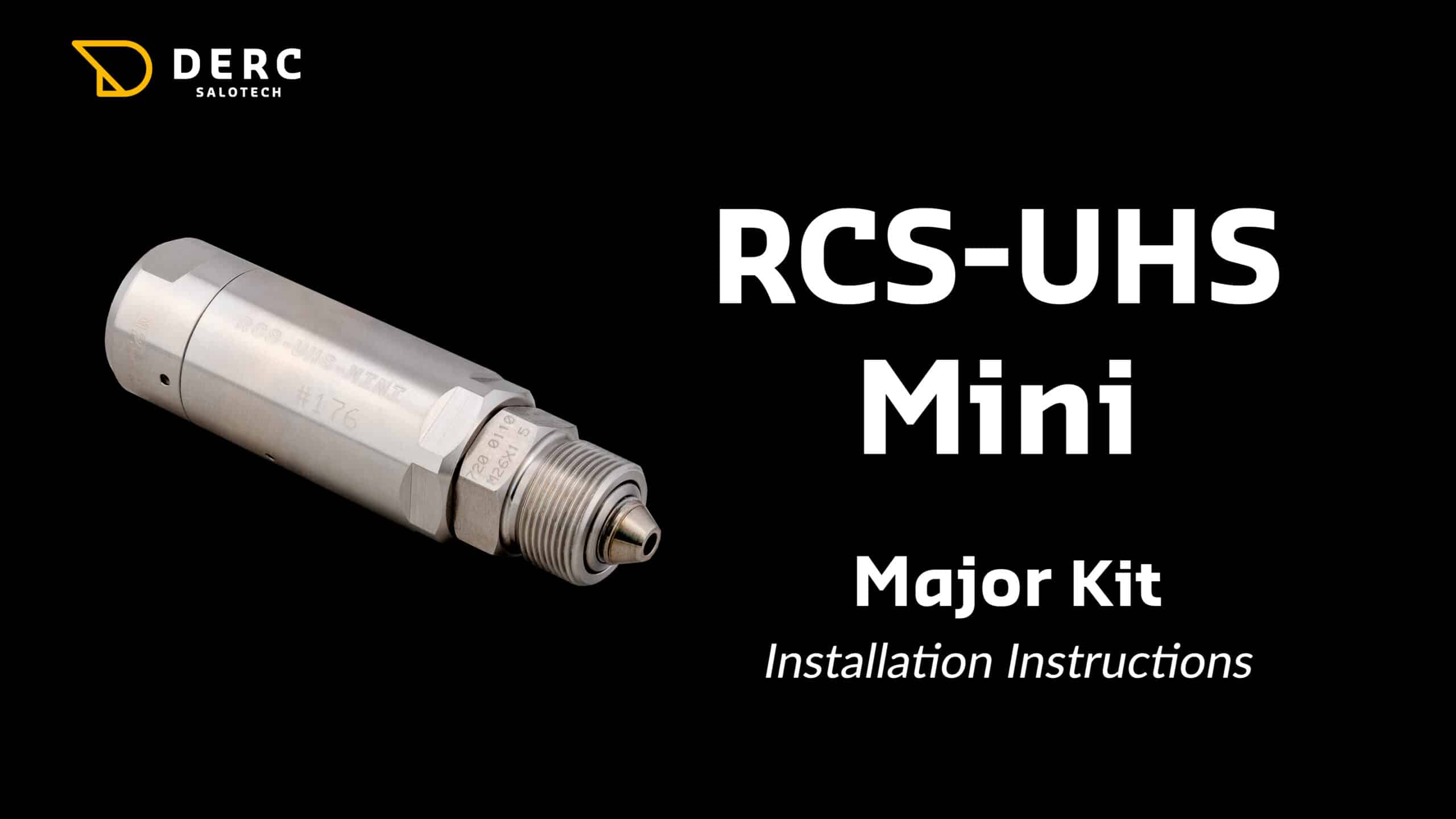

MAINTENANCE KITS
DESCRIPTION
PART NO.
Minor kit
RCS-UHS-MINI-100
Major kit
RCS-UHS-MINI-300
Tool kit
RCS-44-500
