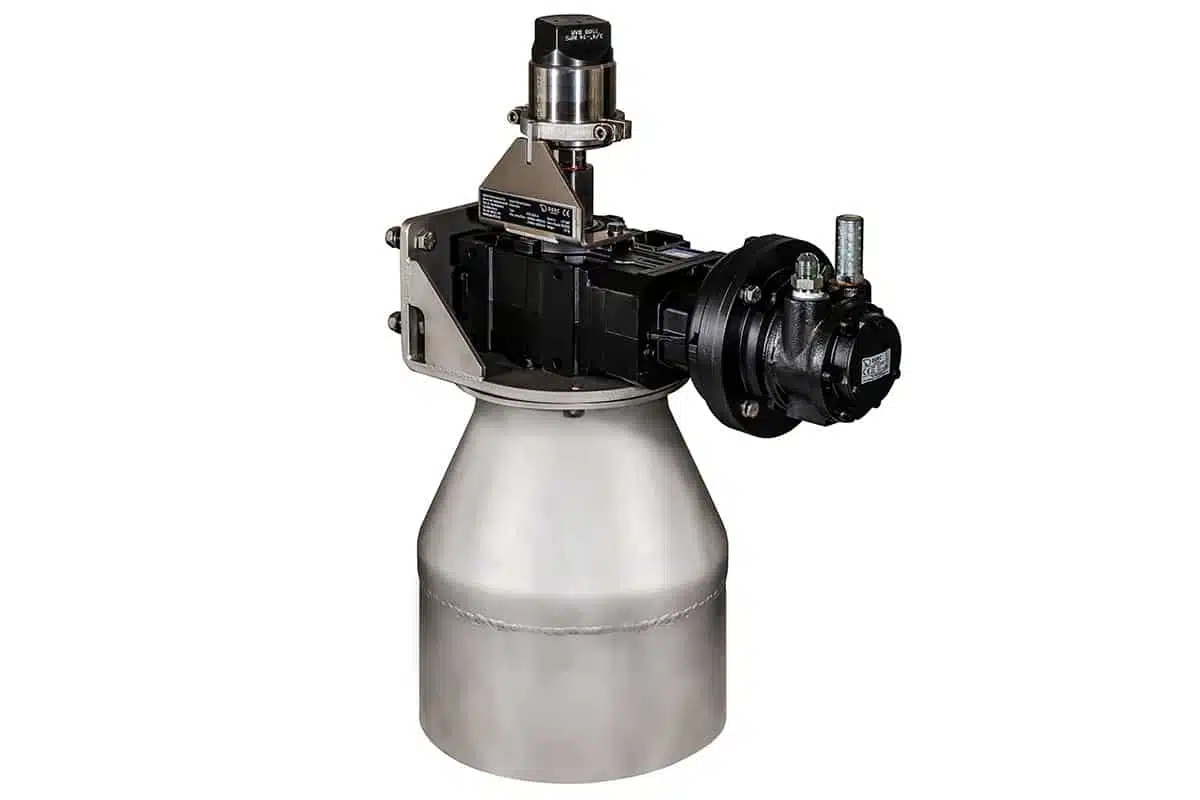

DERC Rotary Coupling Swivel RCS-200

Powered Rotary Coupling

The RCS-200 is an air or hydraulic powered rotating coupling assembly (swivel) with a maximum working pressure of 1500 bar. It is designed as a surface cleaning device and is the tool for outside tube bundle cleaning (see also DERC Shell Side Blaster). The Powered Rotary Coupling is speed adjustable and available with different nozzle heads and nozzle options.

Optional Arms and Heads

The RCS-200 series comes standard with a stainless steel guard which protects the nozzle head and arms. The nozzle head and arms have a jet path of 215 mm and are available in 3 versions.

Features

• Various rotations for high jet impact
• Bended nozzle arms with flow stabilizers to produce powerful and effective jets
• Various heads, and customization is possible for a larger range of applications
• Replaceable high quality nozzle tips with maximum jet quality

Applications

• External tube bundle cleaning
• Surface cleaning systems and solutions, combined with our automated solution rails and tractors
• Cleaning of floors, conveyors and large surfaces
• Installation on many controlled moveable systems

Inlet Connections

The RCS-200 series are standard delivered with the following inlet connections (straight / 90°):

• 3/4” NPT Female
• 3/4” MP Female
• M24 x 1.5 Female
• M36 x 2 Male
