DERC Rotary Coupling Swivel RCS-44
Low maintenance, easy to maintain
DERC RCS-44 swivels are designed to transport high pressure water from a stationary line to a rotating or twisting assembly. They feature replaceable seals, heavy duty ball bearings, a stainless steel construction and a low static torque for easy rotation.
Low Maintenance

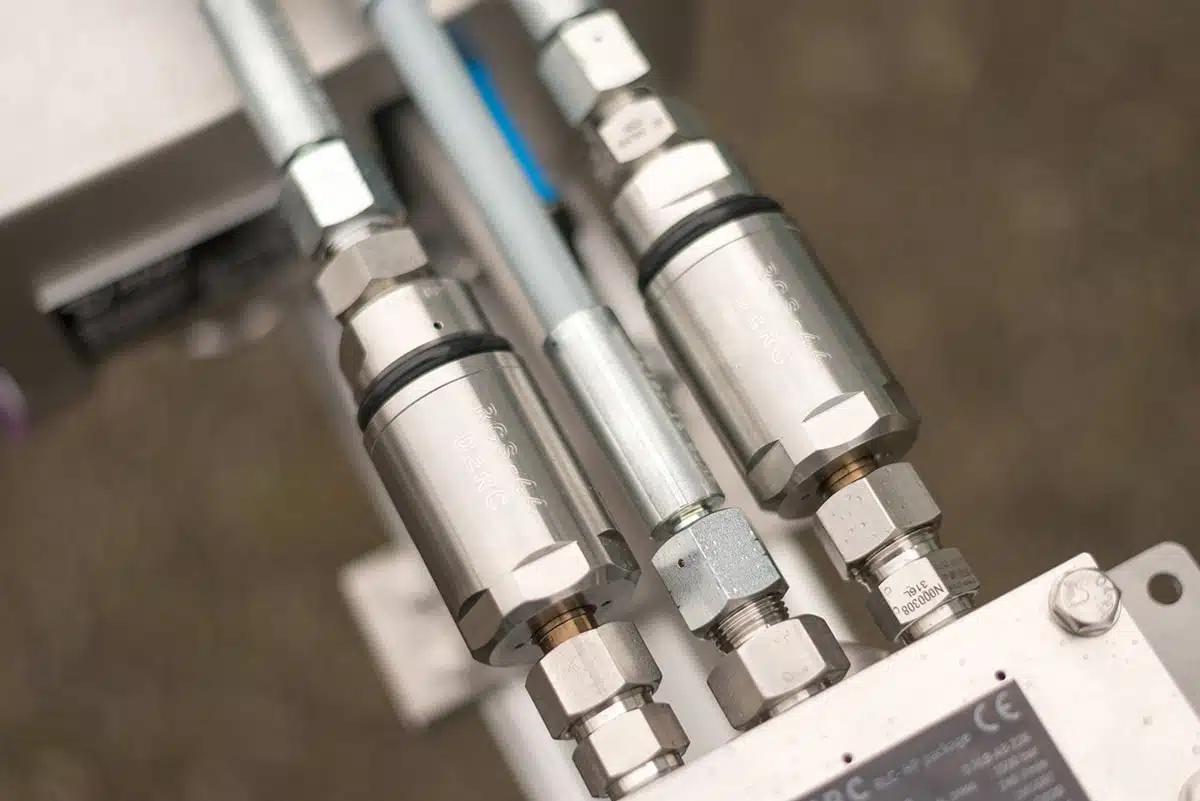

The DERC RCS-44 swivels are low maintenance due to life lubricated bearings, no need to add grease. They are installed as standard equipment on our lancing machines and are available with either 0º or 90º inlets.
Features
- Replaceable seals
- Lifetime lubricated ball bearings
- Low static torque for easy rotation
- Stainless steel construction
- 0º or 90º inlet connection
- Common metric wrench sizes
- NPT, metric and UNF threadings available
- Up to 600 RPM
Applications
- Lancing machines
- Hose reels
- Rotating equipment
Specifications
DERC RCS-44 OPTIONS
INLET CONNECTION
SHAFT CONNECTION
DIAMETER
LENGTH
MAX. PRESSURE
MAX. FLOW
PART NO.
1/2"NPT F
1/4"NPT M
44 mm
115 mm
1000 bar
140 lpm
RCS-44-12NF.14NM
13/16"UNF F
9/16" UNF LH M
44 mm
155 mm
1500 bar
100 lpm
RCS-44-916MP
13/16" UNF F 90°
9/16"UNF LH M
44 mm
150 mm
1500 bar
100 lpm
RCS-44-916MP-90°
MAINTENANCE KITS
DESCRIPTION
PART NO.
Major kit RCS-44 1500 bar
RCS-44-1500-300

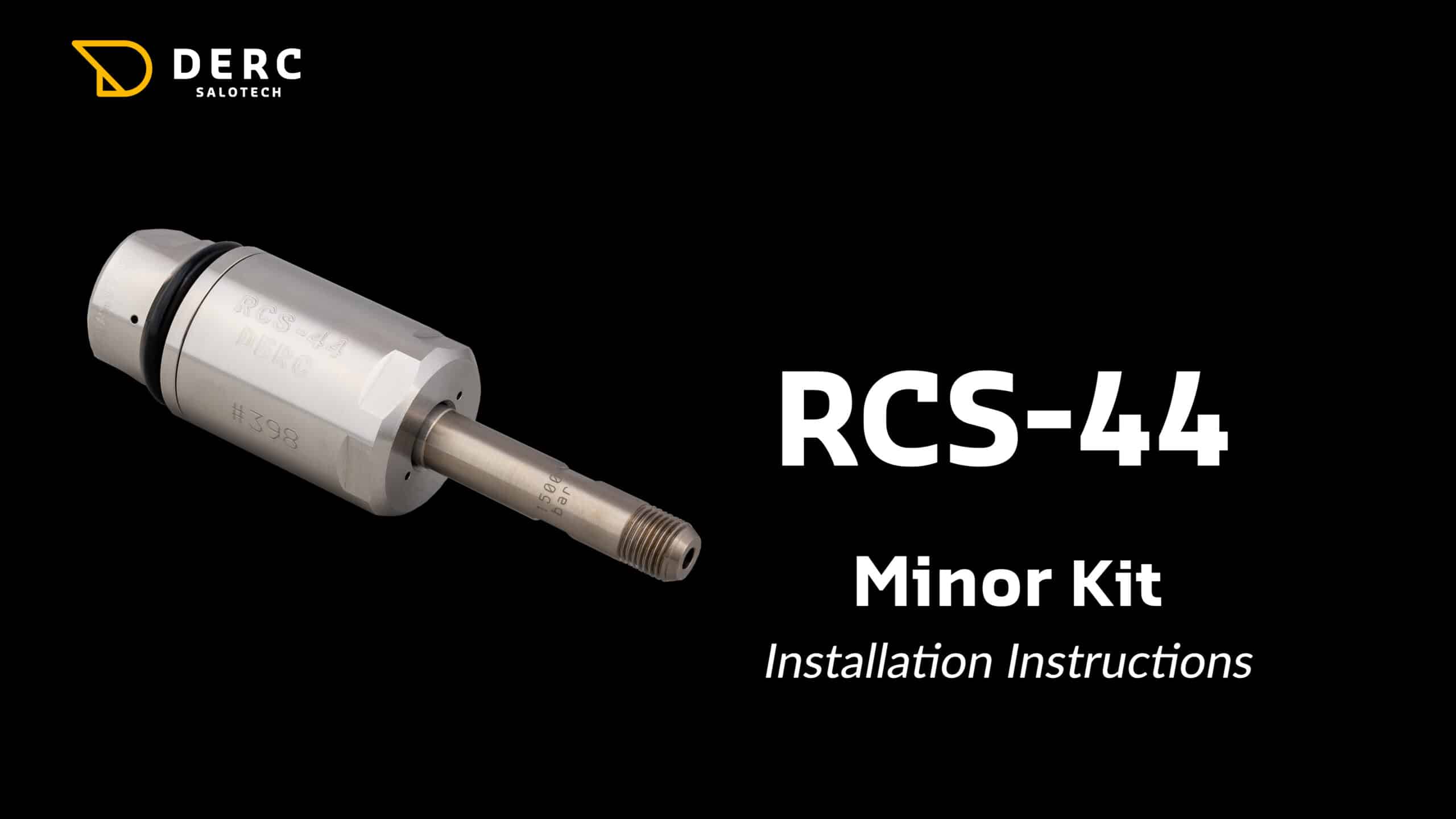

Minor kit RCS-44 1500 bar
RCS-44-1500-100
Major kit RCS-44 1000 bar
RCS-44-300
Minor kit RCS-44 1000 bar
RCS-44-100
Tool kit RCS-44
RCS-44-500
