DERC Speed Regulated Line Cleaner SLC

Versatile Modular Pipe Cleaning Tool

The rotation speed of this modular pipe cleaning tool can easily be adjusted “manually” for the required cleaning job. Slow speeds for plugged pipes with hard residues, and fast speeds for polishing the inner walls of the pipes.

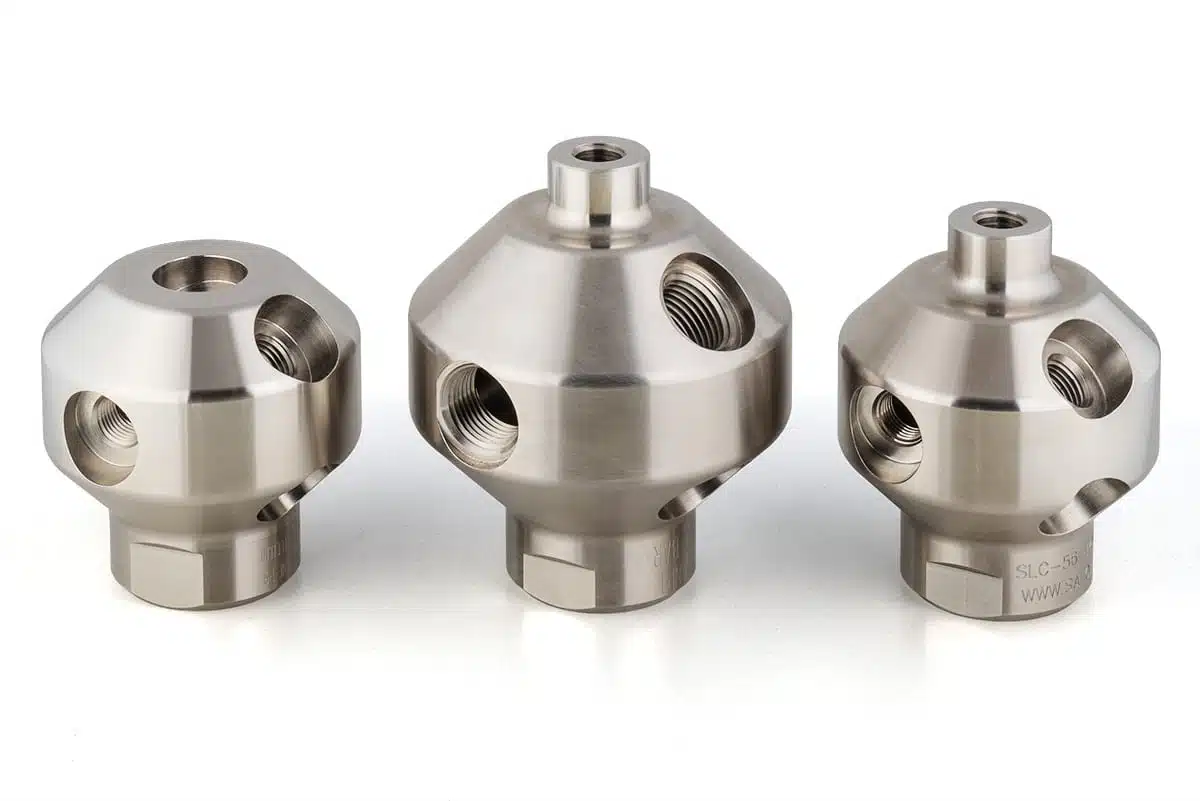

Cleaning Heads

To suit the requirements of every cleaning job the SLC has a variety of head choices available to which you can connect a pulling ring, customized ports and have multiple jetting options. The SLC heads are based on pressure, flow and type of cleaning work.

Extension Lances

Certain head options require extension nipples. See our extension lances for the possibilities.

Centralizers

The DERC Salotech centralizers allow the SLC to work seamlessly with our high pressure extension arms, placing the effective water jets closer to the wall of the pipe. In addition the jetting configurations can easily be optimized with our high quality DERC Salotech inserts, to provide either more pulling power or more unplugging power.

Features

  • Up to 1500 bar
  • Manual speed adjustment
  • Choose the right SLC head for the job
  • Optional pulling ring
  • Optional extension lances
  • Rugged stainless steel construction
Specifications
Downloads

DERC SLC OPTIONS

SLC-1000

SLC-1500

INLET CONNECTION

3/4"NPT F

M24 x 1.5 Flat F 3/4” - 14 NPS F (3/4 MP)

SHAFT CONNECTION

3/4”NPT M

M24 x 1.5 Flat M

MAX. PRESSURE

1000 bar

1500 bar

DIAMETER

75 mm

75 mm

LENGTH

155 mm

175 mm

MAX. FLOW

380 lpm

380 lpm

PART NO.

SLC-1000-34NF.34NM

SLC-1500-24FV.24MR
SLC-1500-12F.24MR

SLC HEAD OPTIONS

SLC-56-12NF

SLC-56-14NF

SLC-57-14NF

SLC-66-14NF

SLC-66-34UF

SLC-67-14NF

OFF SET

3, 5, 9, 15

3, 5, 9, 15

3, 5, 9, 15

3, 5, 9, 12, 15

5, 9, 12, 15

3, 5, 9, 15

MAX. PRESSURE

1000 bar

1000 bar

1000 bar

1500 bar

1500 bar

1500 bar

CONNECTION

6x 1/2” NPT

6x 1/4” NPT

7x 1/4” NPT

6x 1/4” NPT

6x 3/4” UNF

7x 1/4” NPT

JET ANGLE

2x 45°
2x 90°
2x 135°

2x 45°
2x 90°
2x 135°

1x 15°
2x 45°
2x 90°
2x 135°

2x 45°
2x 90°
2x 135°

2x 45°
2x 90°
2x 135°

2x 15°
2x 45°
2x 90°
2x 135°

EXTENSION LANCE

SLC-56-EXT-xxx

-

-

-

SLC-66-EXT-xxx

-

PULLING RING

SLC-90

SLC-90

-

SLC-90

SLC-90

-

SLC EXTENSION LANCES

SLC-1000

TOTAL WIDTH 90 GR

TOTAL WIDTH 45 GR

SLC-56-EXT-050

190

146

SLC-56-EXT-075

240

181

SLC-56-EXT-100

290

217

SLC-56-EXT-150

390

287

SLC-56-EXT-200

490

358

SLC-56-EXT-250

590

428

SLC-56-EXT-300

690

499

SLC-56-EXT-350

790

569

SLC-56-EXT-400

890

640

SLC-1500

TOTAL WIDTH 90 GR

TOTAL WIDTH 45 GR

SLC-66-EXT-050

182

140

SLC-66-EXT-075

232

175

SLC-66-EXT-100

282

210

SLC-66-EXT-150

382

281

SLC-66-EXT-200

482

351

SLC-66-EXT-250

582

422

SLC-66-EXT-300

682

492

SLC-66-EXT-350

782

563
