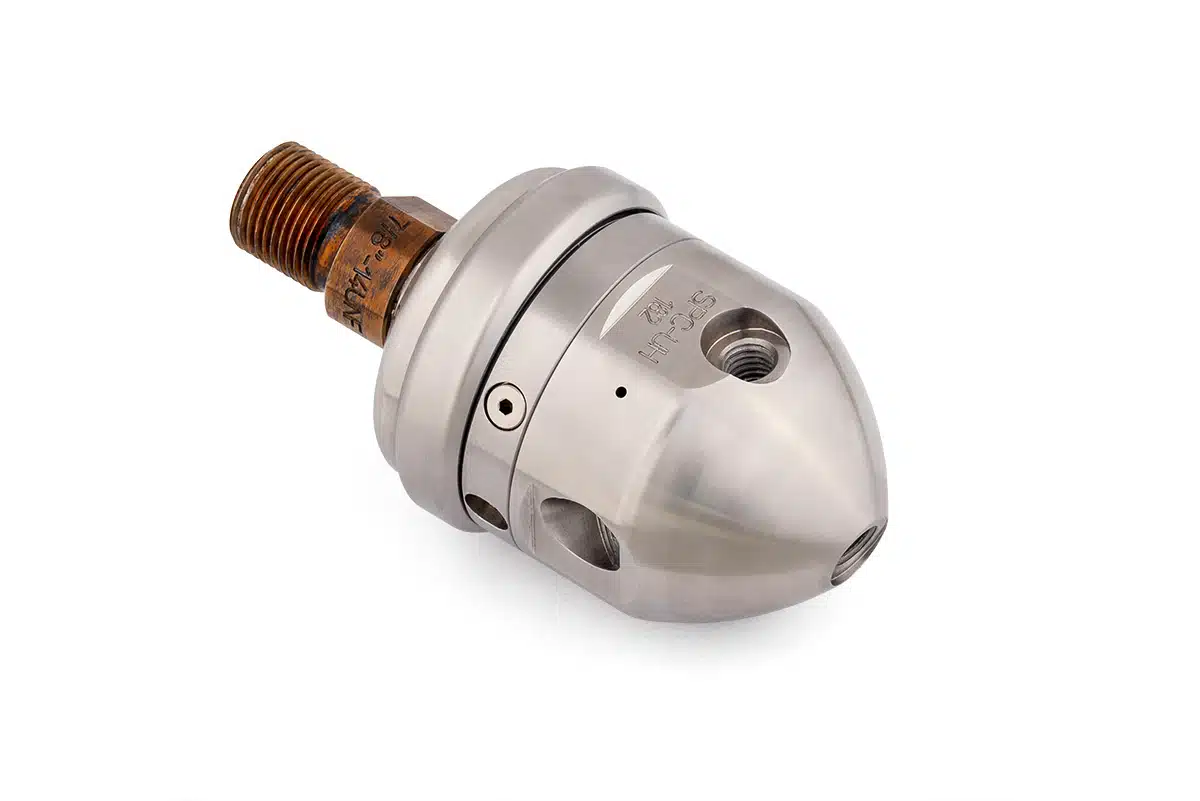

DERC Speed Regulated Pipe Cleaner SPC-UH

Cleaning Pipes with Multiple Elbows up to 3000 Bar / 43K

DERC Salotech has developed the DERC Speed Regulated Pipe Cleaner (SPC) for ultra-high pressure cleaning with bended pipes. The SPC nozzles are water driven and suitable for a working pressure up to 3000 bar. The SPC’s have an easy adjustable rotation speed and are provided with a hardened protection ring.

Features

  • Heavy duty stainless steel construction
  • Short and robust design
  • Adjustable rotation speed by an adjusting nut
  • Unique versatile tool due to modular design
  • Low maintenance
  • Long life of high pressure seals

Modular Design

The SPC-UH is designed in a way that the high pressure swivel with the adjustable break and the nozzle head are modular, in two parts. The design enables SPC-UH nozzle assemblies with different nozzle heads (R size) to suit your high pressure pump capacity.

Adjustable rotation speed

The rotation speed can easily be adjusted by hand (spanner) to adjust the SPC tool for each application. The SPC is designed and constructed for waterblast cleaning of pipes as small as 4” with elbows.

Safe operation

The DERC SPC comes with special tooling for easy and safe maintenance. The DERC SPC Centralizer makes it possible to centre the DERC SPC, thus protecting the rotating nozzle and achieve the best cleaning result.

Connections

The DERC SPC-UH is available with 3/4”UNF F (3/8”HP, H6) and 7/8”UNF M connection. For both these types we offer thermoplastic hoses of SpirStar to keep the complete assembly as short as possible.

Specifications
Downloads

SPC-UH-H6F-R4

SPC-UH-H6F-R6

SPC-UH-H6F-R8.5

3/4" UNF F

MAX. PRESSURE

3000 bar

3000 bar

3000 bar

PRESSURE 2500 BAR

35-55 lpm

25-35 lpm

17-25 lpm

PRESSURE 2800 BAR

35-50 lpm

25-35 lpm

17-25 lpm

PRESSURE 3000 BAR

35-50 lpm

25-35 lpm

17-25 lpm

INLET CONNECTION

3/4" UNF F

3/4" UNF F

3/4" UNF F

ROTATION SPEED (ADJUSTABLE)

100-500 rpm

100-500 rpm

100-500 rpm

INSERTS

5 x 965.xxx

5 x 965.xxx

5 x 965.xxx

LENGTH

114 mm

114 mm

114 mm

DIAMETER

70 mm

70 mm

70 mm

WEIGHT

1,65 kg

1,65 kg

1,65 kg

MAX. TEMP. MED.

80°C

80°C

80°C

SPC-UH-78UHM-R4

SPC-UH-78UHM-R6

SPC-UH-78UHM-R8.5

7/8" UNF M

MAX. PRESSURE

3000 bar

3000 bar

3000 bar

PRESSURE 2500 BAR

35-55 lpm

25-35 lpm

17-25 lpm

PRESSURE 2800 BAR

35-50 lpm

25-35 lpm

17-25 lpm

PRESSURE 3000 BAR

35-50 lpm

25-35 lpm

17-25 lpm

INLET CONNECTION

7/8" UNF M

7/8" UNF M

7/8" UNF M

ROTATION SPEED (ADJUSTABLE)

100-500 rpm

100-500 rpm

100-500 rpm

INSERTS

5 x 965.xxx

5 x 965.xxx

5 x 965.xxx

LENGTH

133 mm

133 mm

133 mm

DIAMETER

70 mm

70 mm

70 mm

WEIGHT

1,75 kg

1,75 kg

1,75 kg

MAX. TEMP. MED.

80°C

80°C

80°C
