DERC Spin-Jet Rotating Nozzles

360° Cleaning Result

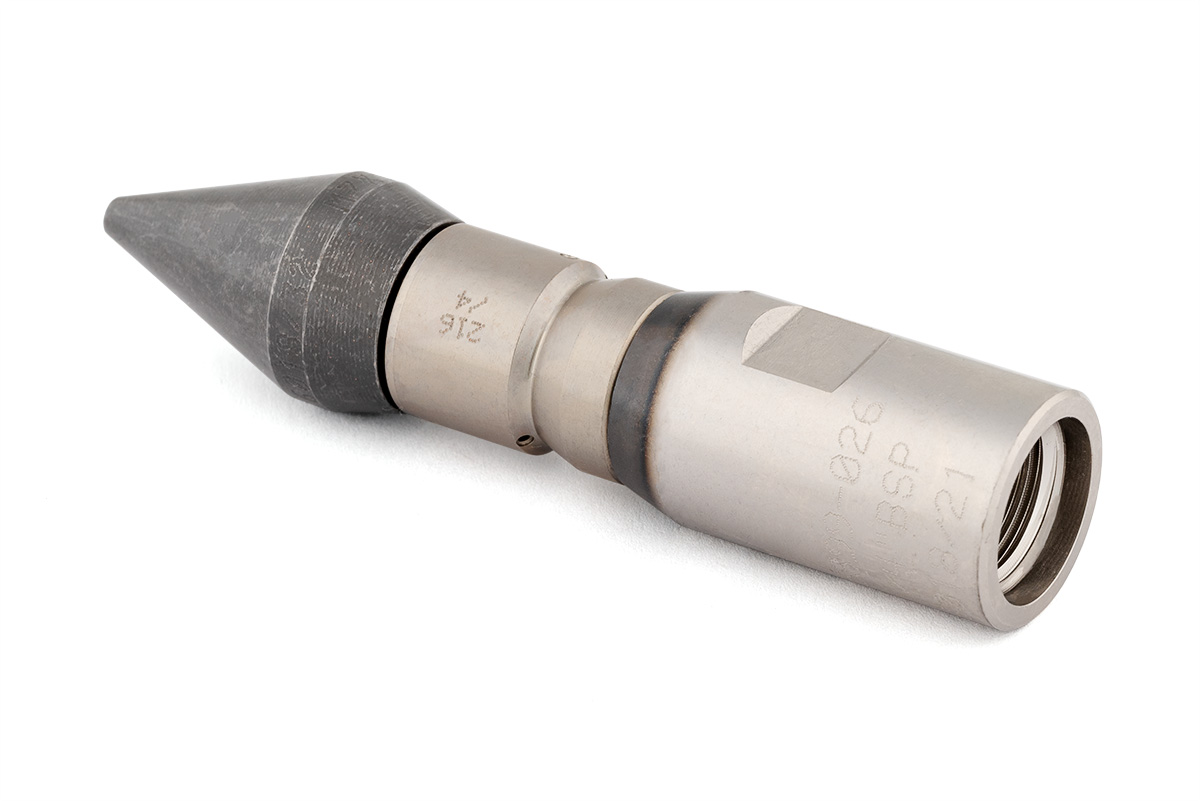

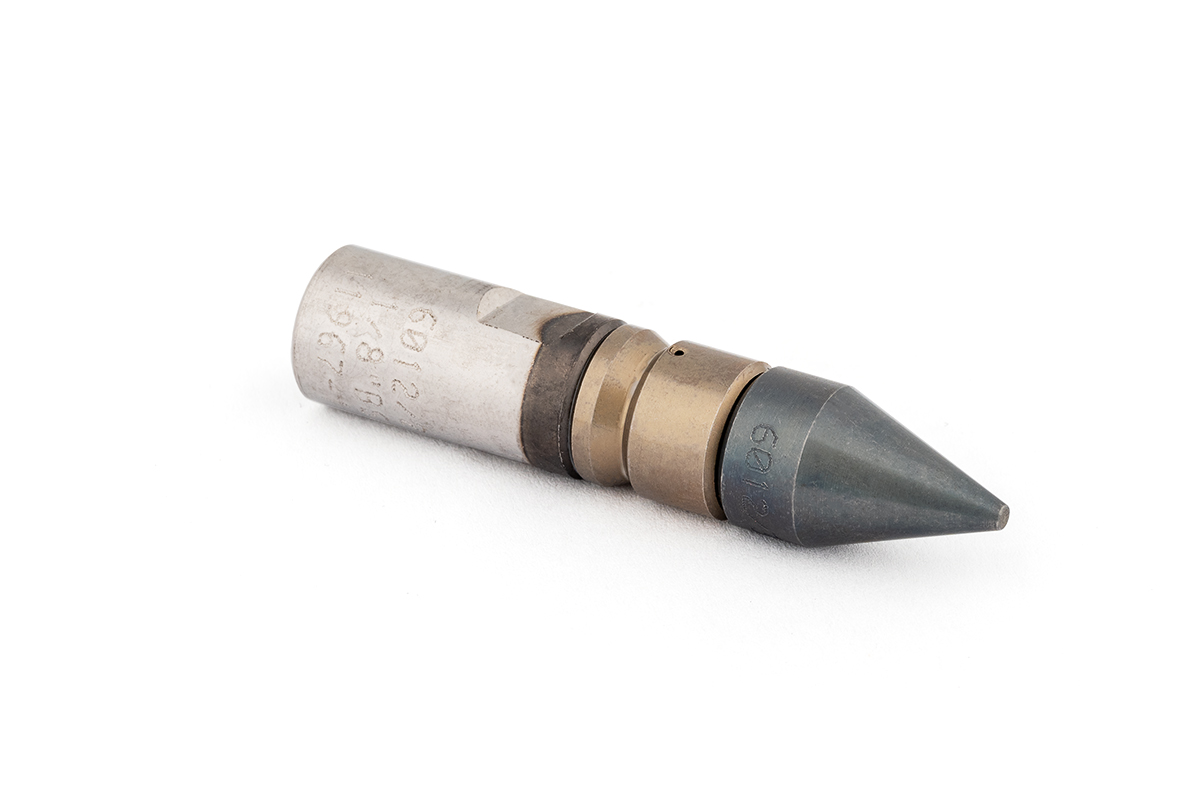

The DERC Spin-Jet nozzles are designed for cleaning heat exchanger tubes and pipe lines with high pressure water jetting technology. The water flow of your high pressure pump rotates the DERC Spin-Jets. DERC Salotech manufactures a complete range of rotating Spin-Jet tube cleaning nozzles. The DERC Spin-Jets give perfect 360° cleaning results.

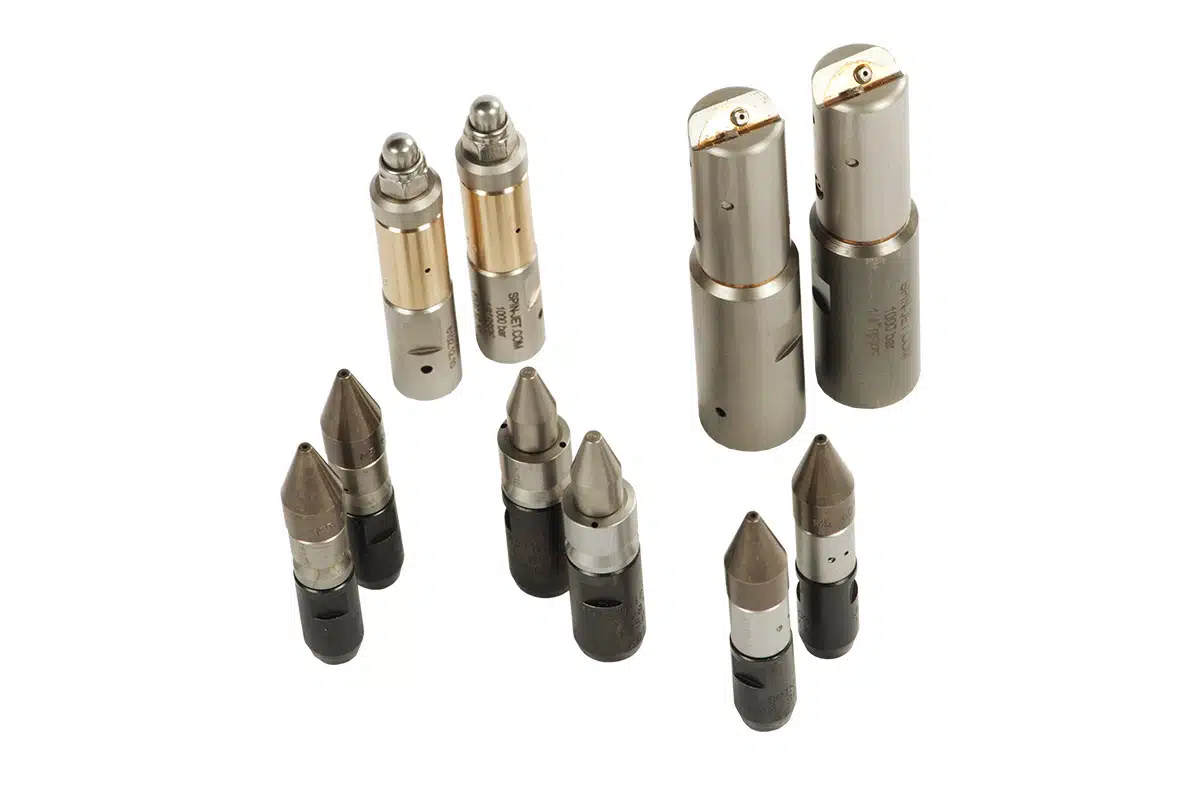

5 Standard Nozzles

Through many years of practical experience and by working closely with our customers, we produced five models as the standard range.

Custom Made Nozzles

For specific cleaning projects the engineers of DERC Salotech will design and manufacture deviating models to your specific needs, in accordance with strict product requirements and safety regulations.

Continuous Improvement

The worldwide known “SI nozzle” is subject to continuous improvement. Improved materials and optimized processing methods ensure a perfect rotating nozzle with an optimum efficiency and perfect cleaning results. The DERC Spin-Jets give a perfect 360° cleaning result, as required for IRIS inspections.

Specifications
Downloads

ANGLE

APPLICATION

DIAMETER

CONNECTION

MAX. PRESSURE

2 x 90° Radial, 2 x 45° (optional front jet)

Heat exchanger tube and pipe cleaning

6, 8, 10, 18, 28 and 40 mm

Metric, BSP, NPT, MP RH or LH

1500 bar

4x 90° Radial and optional front jet

Heat exchanger tube and pipe cleaning

6, 8, 10, 12, 18, 28 and 40 mm

Metric, BSP, NPT, MP RH or LH

1500 bar

2 x 10° Front, 2 x 90° / 2 x 45°

Heat exchanger tube and pipe cleaning

10, 12, 18, 28 and 40 mm

Metric, BSP, NPT, MP RH or LH

1500 bar

2 x Cross Jet Front and 2 x 90° Radial

Heat exchanger tube and pipe cleaning

12, 22, 31 and 46 mm

Metric, BSP, NPT, MP RH or LH

1000 bar

2x 90° Radial

Heat exchanger tube and pipe cleaning

10, 12, 22, 31 and 46 mm

Metric, BSP, NPT, MP RH or LH

1000 bar
