DERC Hose Catcher VE.80000

For safe manual high pressure cleaning of pipe lines

DERC Salotech designed a complete line of Hose Catchers, which provide a safe way of cleaning pipes manually. When cleaning pipes and tubes there is a risk the nozzle could come out of the pipe backwards. To protect the operator DERC Salotech has created a safety solution: DERC Hose Catcher.

The DERC Hose Catcher is available in different types:

VE.20000 for cleaning pipe lines
VE.21000-22000 for cleaning pipes in small spaces
VE.40000 for cleaning vertical heat exchangers
VE.70500 for cleaning heat exchangers
VE.80000 for cleaning larger pipes (up to 400 mm OD)

VE.80000

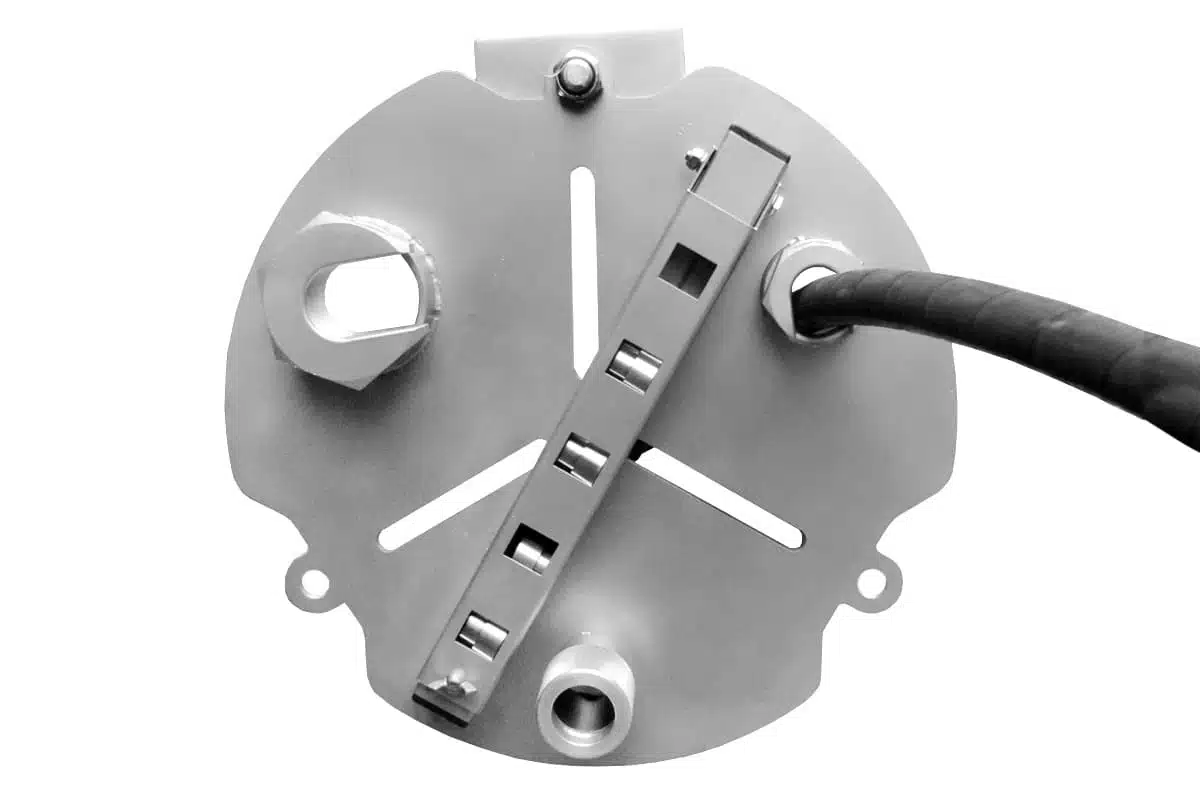

The DERC Hose Catcher type VE.80000 is a specially constructed adjustable auxiliary tool for safe high pressure cleaning of pipes by means of a hose with a jetting nozzle mounted to the front.

The Hose Catcher consists of a stainless steel base plate with 3 connections; one for 1/2”, one for 3/4” high pressure hoses and one for flex lances in various diameters. Flex lances of different diameters can be used due to the various diameters of the interchangeable Hose Stoppers. These Hose Stoppers are stored in the cassette to prevent losing them. The 1/2” and 3/4” connections are nuts which function as hose stoppers. All parts are as much as possible fixed to the base plate to keep everything together.

The Hose Catcher can be mounted on the pipe in various ways; mountable clamps, bolts or when there is no flange, with lashing.

Features

+ Safe pipe cleaning
+ Suitable for various flex lances and high pressure hoses
+ Variable mounting possibilities on pipe
+ Complete pipe coverage for pipes with maximum outer diameter of 400 mm (bigger diameter available on request)

Hose Stopper

Every hose catcher, except the VE.20000, is equipped with hose stoppers for different flex hoses diameters. The hose stopper ensures that the hose stops at the right moment. The stoppers can be stored in the cassette, which is located on the hose catcher, to keep everything together.
